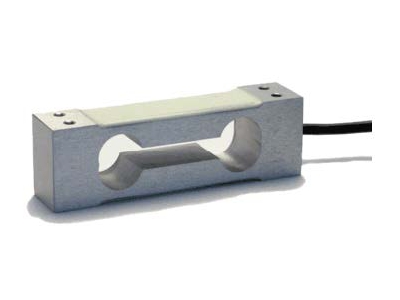

LSP Series is a low capacity, low cost high accurate single point bending beam load cell. It is ideal for OEM applications such as electronic scales and weighing machines. The single point design is highly resistant to eccentric loading allowing direct mounting to the scale base and weighing platform. The LSP series features a moisture proof sealant.
LSP
Single Point
Transducer Techniques
- Highly Resistant to Eccentric Loading
- Tension & Compression
- Accuracy: ±0.06% R.O.
- Length: 69.8mm
- Height: 7.1mm
- Width: 22.0mm
- Connection: 3m Integral Cable
Details
Specifications
Type
Weighing Beam
Application
Tension & Compression
Full Scale
2.2 lbs
4.5 lbs
11.2 lbs
22 lbs
4.5 lbs
11.2 lbs
22 lbs
Output
1 mV/V
1.5 mV/V
1.5 mV/V
Precision
±0.06 % FS
Excitation
10 V DC
Min Temperature
-10 °C
Max Temperature
60 °C
Models
LSP
Downloads
LSP Series Overview
