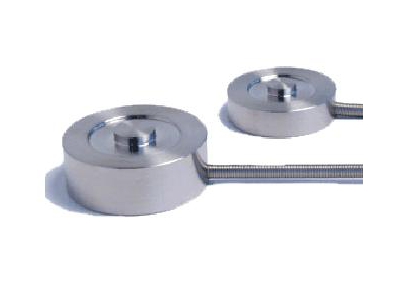

The LBO Series (Load Button) load cells are offered for compression only applications where space is limited. Matching surface must be flat and at least the diameter of (D1). The loading diameter (D2) is slightly convex for accurate load distribution. Threaded mounting holes are provided on the bottom surface for fastening down from beneath. These sensors are manufactured from heat treated 17-4ph stainless steel and sealed for use in most industrial environments.
LBO
Low Profile
Transducer Techniques
- Compression
- Accuracy: ±0.60% R.O.
- Outer Diameter: 25.4mm - 75.9mm
- Height: 10.2mm - 38.1mm
- Connection: 3m Integral Cable
- Stainless Steel
Details
Specifications
Type
Load Button
Application
Compression
Full Scale
100 lbs
250 lbs
500 lbs
750 lbs
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
15000 lbs
20000 lbs
30000 lbs
50000 lbs
250 lbs
500 lbs
750 lbs
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
15000 lbs
20000 lbs
30000 lbs
50000 lbs
Output
2 mV/V
Precision
±0.60 % FS
Excitation
10 V DC
Min Temperature
-54 °C
Max Temperature
93 °C
Models
LBO-100
LBO-100A
LBO-10k
LBO-15k
LBO-1k
LBO-20k
LBO-250
LBO-2k
LBO-30k
LBO-3k
LBO-500
LBO-50k
LBO-5k
LBO-750
Downloads
LBO Load Button
