The GT transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer.
This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensors principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life.
The GT series gauging transducer employs precision linear bearings to optimize the LVDTs measurement precision and repeatability.

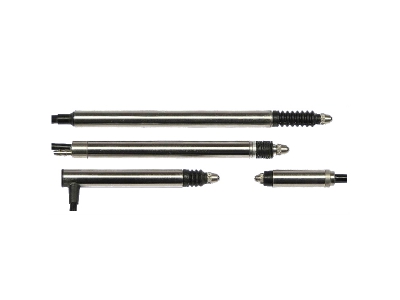

GT
Precision LVDT Gauging Displacement Transducer
RDP Electrosense
- Miniature LVDT
- Precision Linear Bearings
- Available in Return Spring or Air Push Version
- Rod Profile Housing
- Stainless Steel Housing
- Connection: 2m Integral Cable (Longer Cable Available)
- High Accuracy
Details
Specifications
Type
LVDT
Full Scale
0.5 mm [0.02"]
1 mm
2.5 mm
5 mm
1 mm
2.5 mm
5 mm
Output
V/V AC
Non-Linearity
±0.10 % FS
±0.25 % FS
±0.25 % FS
Resolution
Infinitesimal
Excitation
0.5 - 7 V AC
5 V AC
5 V AC
Min Temperature
-40 °C
Max Temperature
100 °C
Models
GT
GT0500Z
GT1000
GT2500
GT5000
GTX1000
GTX2500
GTX5000
