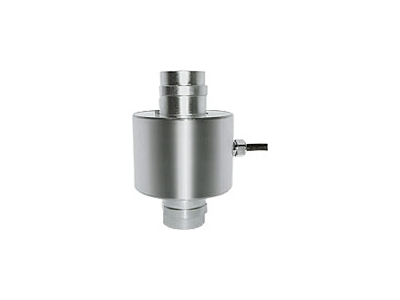

CB50X-DL

Rod Type Load Cell with RS-485

Lorenz Messtechnik GmbH

  • Approved up to 4000d OIML R60
  • Spherical Base & Self-Centering Capability
  • Anti-Rotation System Included
  • RS-485 Digital Output Signal
  • Compression
  • Accuracy: 0.014% F.S.
  • Outer Diameter: 88.9mm

Specifications

Type
Rod Type
Application
Compression
Full Scale
45000 lbs
66000 lbs
88000 lbs
132000 lbs
Output
RS-485
Precision
±0.014 % FS
Excitation
7.5 V - 16 V DC
IP Rating
IP68
Min Temperature
-10 °C
Max Temperature
40 °C

Models

CB50X-DL-C4 10e

Downloads

CB50X-DL, Rod Type Load Cell with RS-485 Overview
Datasheet
