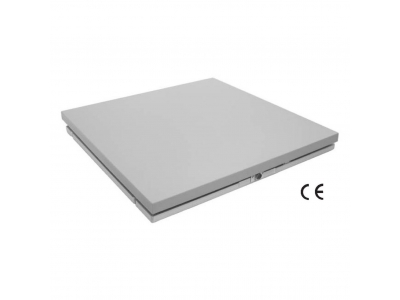

The BP600600 Biomechanics Force Platform provides a square working area and a size larger than the standard AMTI OR6-7 force platform. The BP600600 can be used for biomechanics, engineering, medical research, orthopedics, rehabilitation evaluation, prosthetics, and general industrial uses. Specific uses include gait analysis, stability analysis, neurological analysis, prosthetics fitting, athletic performance, shoe design, and force, power, and work studies.
BP600600
Force Platform [Discontinued]
Advanced Mechanical Technology Inc. (AMTI)
- [Discontinued]
- Square top surface and composite construction
- High-frequency performance; ideal for sports applications
Details
Specifications
Full Scale (Fz)
1000 lbs
2000 lbs
4000 lbs
2000 lbs
4000 lbs
Fz Natural Frequency
700 Hz
780 Hz
900 Hz
780 Hz
900 Hz
Non-Linearity
± 0.2 % FS
Resolution
12-bit
14-bit
14-bit
Output
± 10 V DC
Dimensions
600 x 600 x 102 mm
Weight
60 lbs
Top Plate Material
Composite
Interface
USB
RS-232
RS-232
Power Supply
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C
Models
BP600600-1000
Fz Range: 1000 lbs, Fz Freq.: 700 Hz
BP600600-2000
Fz Range: 2000 lbs, Fz Freq.: 780 Hz
BP600600-4000
Fz Range: 4000 lbs, Fz Freq.: 900 Hz
