The BP12001200 is a large platform with a target area that is perfect for sports performance analysis. The platform measures the forces and moments applied to its top surface as the subject stands, steps, or jumps on it. The Fx, Fy, and Fz force components, act along the axes of an orthogonal x, y, z-coordinate system. The platform is used in Research and Clinical studies looking at balance, gait, and sports analysis.

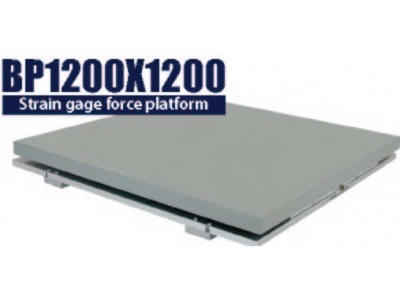

BP12001200
Strain Gage Force Platform [Discontinued]
Advanced Mechanical Technology Inc. (AMTI)
- [Discontinued]
- Platform with a large target area
- Perfect for sports performance analysis
Details
Specifications
Full Scale (Fz)
1000 lbs
2000 lbs
4000 lbs
2000 lbs
4000 lbs
Fz Natural Frequency
350 Hz
390 Hz
420 Hz
390 Hz
420 Hz
Non-Linearity
± 0.2 % FS
Resolution
12-bit
14-bit
14-bit
Output
± 10 V DC
Dimensions
1200 x 1200 x 108 mm
Weight
130 lbs
Top Plate Material
Composite
Interface
USB
RS-232
RS-232
Power Supply
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C
Models
BP12001200-1000
Fz Range: 1000 lbs, Fz Freq.: 350 Hz
BP12001200-2000
Fz Range: 2000 lbs, Fz Freq.: 390 Hz
BP12001200-4000
Fz Range: 4000 lbs, Fz Freq.: 420 Hz
Downloads
BP12001200 Datasheet
