APK T4-30

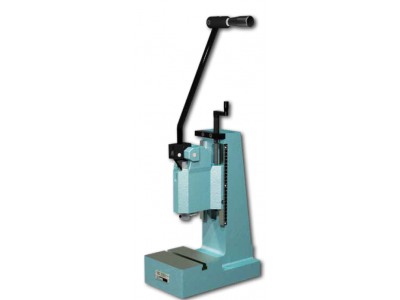

Manual Toggle Press

Mäder Pressen

  • Manual Toggle press
  • Capacity: 30.0 kN
  • Working stroke: 30 mm
  • Throat: 100 mm
  • Daylight: 55 - 285 mm
  • Table size: 185 x 145
  • Ram bore Ø x Depth: 10H7 x 30 mm

Details

APK T range

The extra-powerful hand-operated toggle presses of the APKT 3 and APKT 4 ranges are especially suitable for the frequently changing applications in the modelmaking and in the workshop. Their high forces of up to 30.0 kN enable them to be flexibly used for widely differing applications.

The Advantages:

- Choice of different stoke lengths

- Extra-stable press base design

- Daylight easily adjustable by means of the standard press head threaded spindle height adjustment

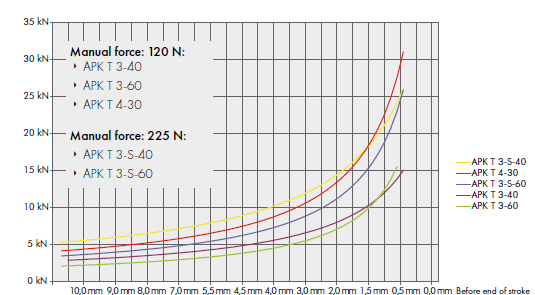

- The nominal force of the press can be achieved with moderate applied force

Specifications

Type of Press
Toggle Press
Capacity
30.0 kN
Working Stroke
30 mm
Daylight Start
55 mm
Daylight End
285 mm
Table Size
185 x 145 mm
Ram Dimensions
10H7 x 30 mm
Ram Size
30 mm

Models

APK T 4-30
APK T 4-30 DP
APK T 4-30 with Precision ram adjustment
APK T 4-30 DP HS
APK T 4-30 with Precision ram adjustment and Return travel lock
APK T 4-30 DP HS Z
APK T 4-30 with Precision ram adjustment, Return travel lock and Counter
APK T 4-30 DP Z
APK T 4-30 with Precision ram adjustment and Counter
APK T 4-30 HS
APK T 4-30 with Return travel lock
APK T 4-30 HS Z
APK T 4-30 with Return travel lock and Counter
APK T 4-30 TB
APK T 4-30 with Table bore 12H7
APK T 4-30 TB DP
APK T 4-30 with Table bore 12H7 and Precision ram adjustment
APK T 4-30 TB DP HS
APK T 4-30 with Table bore 12H7, precision ram adjustment and Return travel lock
APK T 4-30 TB DP HS Z
APK T 4-30 with Table bore 12H7, Return travel lock and Counter
APK T 4-30 TB DP Z
APK T 4-30 with Table bore 12H7, Precision ram adjustment and Counter
APK T 4-30 TB HS
APK T 4-30 with Table bore 12H7 and Return travel lock
APK T 4-30 TB HS Z
APK T 4-30 with table bore 12H7, Return travel lock and Counter
APK T 4-30 TB Z
APK T 4-30 with Table bore 12H7 and Counter
APK T 4-30 Z
APK T 4-30 with Counter
