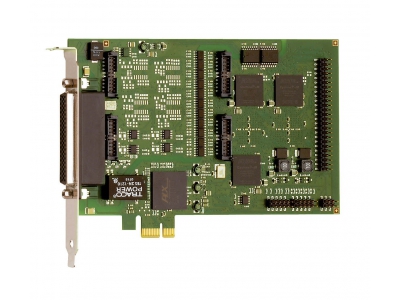

APCIe-1711

Multifunction Counter Board for PCI Express

ADDI-DATA GmbH

  • Multifunction Counter Board for PCI Express
  • 32-bit Data Access
  • RS422 Driver with 5 MHz Max.
  • With RS422/TTL I/O Signals (Model APCIe-1711)
  • With 24 V Input Signals (Model APCIe-1711-24V)
  • Four Onboard Programmable Function Modules

Specifications

Borad Type
PCIe
Input Type
Digital
Frequency
Encoder
PWM
Digital Inputs
28
Digital Outputs
4

Models

APCIe-1711
Isolate Counter Board with Programmable Functionality
APCIe-1711-10MHz
Input Frequency 10MHz, Inputs (A, B, C, D)
APCIe-1711-24V
24V Instead of RS422 (A, B, C, D)
APCIe-1711-5V-I
5V Inputs Instead of 24V (E, F, G)

Downloads

APCIe-1711 Multifunction Counter Board for PCI Express
Datasheet
