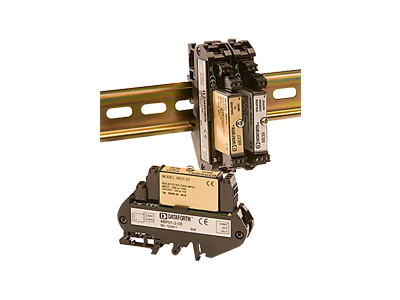

8B47

Thermocouple Input Analog Signal Conditioner Modules

Dataforth

  • Linearized Thermocouple Input Module
  • 1500 V Isolation
  • Accuracy: ± 0.10% to ± 0.20%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
Thermocouple
# of Inputs
1
Output Type
0 - 5 V DC
Bandwidth
3 Hz
Isolation
Yes
Supply Power
5 V DC

Models

8B47J-01
J-Type Thermocouple, 0 to 760°C Input, 0-5 V DC Output
8B47J-02
J-Type Thermocouple, -100 to 300°C Input, 0-5 V DC Output
8B47J-03
J-Type Thermocouple, 0 to 500°C Input, 0-5 V DC Output
8B47J-12
J-Type Thermocouple, 100 to 760°C Input, 0-5 V DC Output
8B47K-04
K-Type Thermocouple, 0 to 1000°C Input, 0-5 V DC Output
8B47K-05
K-Type Thermocouple, 0 to 500°C Input, 0-5 V DC Output
8B47K-13
K-Type Thermocouple, -100 to 1350°C Input, 0-5 V DC Output
8B47K-14
K-Type Thermocouple, 0 to 1200°C Input, 0-5 V DC Output
8B47T-06
T-Type Thermocouple, -100 to 400°C Input, 0-5 V DC Output
8B47T-07
T-Type Thermocouple, 0 to 200°C Input, 0-5 V DC Output
