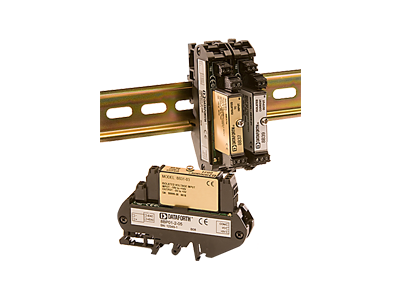

8B42

Transmitter Interface Analog Signal Conditioner Modules

Dataforth

  • 2-Wire Transmitter Interface Input Module
  • 1500 V Isolation for Non-Isolated 2-Wire Transmitters
  • Accuracy: ± 0.05%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 40 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
4 - 20 mA
# of Inputs
1
Output Type
0 - 5 V DC
1 - 5 V DC
Bandwidth
100 Hz
Excitation
12 V DC
Isolation
Yes
Supply Power
5 V DC

Models

8B42-01
4-20 mA Input, 0-5 V Output
8B42-02
4-20 mA Input, 1-5 V Output
