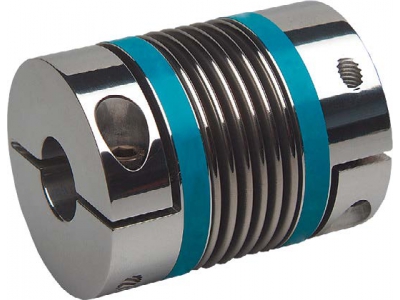

The 8695-type steel bellow coupling is fastened using a clamping hub for torque transmission between the sensor and plant shafts. The facility-side bore is adapted to the existing shaft diameter, allowing for seamless mechanical integration of the torque sensor without further modifications.
The coupling features a stainless steel bellow that transmits torque between the clamping hubs without backlash, ensuring precise and lossless torque transmission. Its highly elastic yet stiff material properties allow it to compensate effectively for axial, angular, and lateral shifts that may occur during assembly and operation. This ensures stable and accurate performance even in challenging applications.

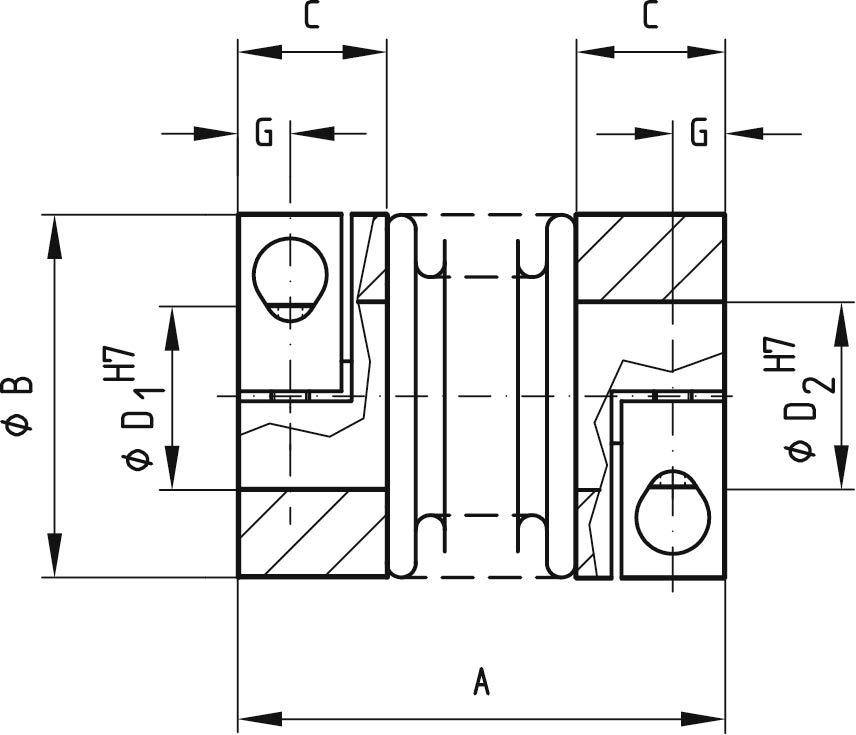

Dimensional drawing Model 8695
