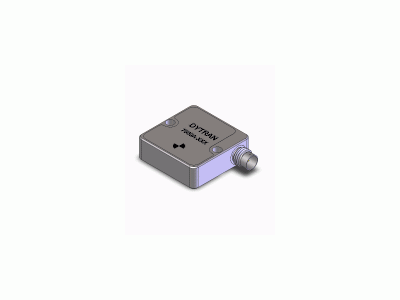

The Dytran model 7500A series is a high precision single axis variable capacitance (VC) accelerometer available with a range of 2g up to 400g. This high performance accelerometer combines an integrated VC accelerometer chip with high drive, low impedance buffer for low level acceleration measurements.
Tailored for zero-to-medium frequency applications, the model 7500A series features a low end frequency response of 0 Hz (DC) and upper frequency range of 400 Hz up to 2,500 Hz. This module contains a MEMS capacitive sensing element, a custom integrated circuit amplifier, low noise electronics and differential output, housed in a lightweight titanium, with a 4-pin 1/4-28 radial connector and easy mounting via two #4 or M3 screws. Units are hermetically sealed for reliable operation in high humidity and dirty environments.
Supplied Accessories: (2) model 6868 mounting screws (4-40)
Suggested Accessories: model 4010 signal conditioner, model 6717 triaxial mounting block
Compatible Cables: 6854A, 6877A
7500A
High Precision MEMS Accelerometer
Dytran Instruments Inc.
- DC response
- MEMS technology
- Ultra low noise
- Differential output
- Operates from +9 to +32 VDC
- 5 mV/g, 10 mV/g, 20 mV/g, 40 mV/g, 80 mV/g, 200 mV/g, 400 mV/g, 1,000 mV/g sensitivity available
- 2g, 5g, 10g, 25g, 50g, 100g, 200g, 400g range available
Details
Specifications
Type
DC Response
# of Axis
1
Full Scale
2 g
5 g
10 g
25 g
50 g
100 g
200 g
400 g
5 g
10 g
25 g
50 g
100 g
200 g
400 g
Output
5 mV/g
10 mV/g
20 mV/g
40 mV/g
80 mV/g
200 mV/g
400 mV/g
1000 mV/g
10 mV/g
20 mV/g
40 mV/g
80 mV/g
200 mV/g
400 mV/g
1000 mV/g
Excitation
9 - 32 V DC
Material
Titanium
Mounting
Screw
Connection
4-Pin Radial Connector
Min Temperature
-55 °C
Max Temperature
125 °C
Models
7500A1
1,000 mV/g, 2g range, 0 - 400 Hz
7500A2
400 mV/g, 5g range, 0-600 Hz
7500A3
200 mV/g, 10g range, 0-1000 Hz
7500A4
80 mV/g, 25g range, 0-1500 Hz
7500A5
40 mV/g, 50g range, 0-2000 Hz
7500A6
20 mV/g, 100g range, 0-2500 Hz
7500A7
10 mV/g, 200g range, 0-2500 Hz
7500A8
5 mV/g, 400g range, 0-2500 Hz
