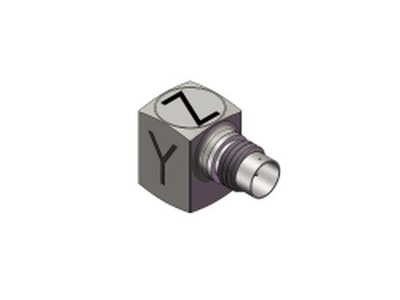

The Dytran model 3313AH series is a miniature triaxial IEPE accelerometer weighing just 4.1 grams and a vertical height of 0.47 inches (11.9 millimeters) and is capable of operating at temperatures up to +325°F (+163°C).
Available with a 1 mV/g up to 10 mV/g sensitivity, the model 3313AH series features an industry standard 4-pin radial connector and 10-32 tapped hole. Design of the model 3313AH series incorporates quartz shear sensing elements, packaged in a laser welded titanium housing. Units have a frequency range of 1.2 to 10,000 Hz and are hermetically sealed for reliable operation in high humidity and dirty environments.
Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32)
Recommended Accessories: model 4114B1 current source power unit, model 6272 magnetic mounting base
Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
3313AH
High Temperature Triaxial Accelerometer
Dytran Instruments Inc.
- IEPE
- Triaxial
- Miniature design
- Broad frequency response
- +325°F (+163°C) operation
- 1 mV/g, 5 mV/g, or 10 mV/g sensitivity available
- 500g, 1000g or 5000g range available
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
500 g
1000 g
5000 g
1000 g
5000 g
Output
1 mV/g
5 mV/g
10 mV/g
5 mV/g
10 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
10-32 Tapped Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
163 °C
Models
3313A1H
1 mV/g, 5,000g range
3313A2H
5 mV/g, 1,000g range
3313A3H
10 mV/g, 500g range
