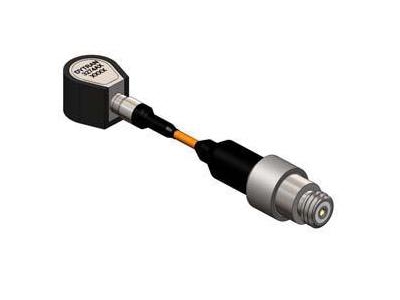

The Dytran 3274A series is an ultra miniature high frequency IEPE accelerometer with IEEE 1451.4 TEDS capabilities.
Units have an overall height of just 0.24-inches (6.1-millimeters), weigh just 2 grams, and are ideal for the measurement of shock and vibration of very small, lightweight objects such as printed circuit boards and board mounted components.
Offered with a sensitivity of 5 mV/g up to 25 mV/g, the series 3274A features a quartz shear sensing element, packaged in a lightweight, teardrop titanium housing. Designed for adhesive mount, the Dytran 3274A series has an upper frequency response of 10,000 Hz. Due to their low mass and high crystal stiffness, units have a resonant frequency of >40 kHz, allowing them to be used to measure high frequency vibration with very little error.
The 3274A series utilizes a specially designed 3-56 coaxial connector, mating with a 3-foot (0.9-meter) replaceable coaxial cable and terminating to a 10-32 jack. Units are hermetically sealed for reliable operation in high humidity environments, as well as case isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6003A03 cable assembly (3-56 to 10-32), (1) model 6298 Petro mounting wax, (1) model 6591A installation/removal wrench
Recommended Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6011A
