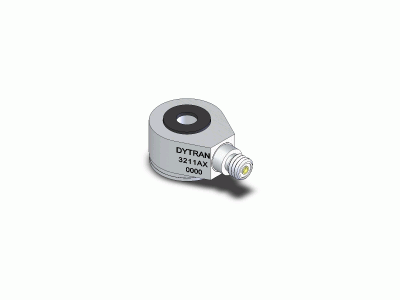

The Dytran 3211A series is a lightweight IEPE accelerometer, designed for applications where 360° cable orientation and a low profile design are critical.
Available with a 10 mV/g up to 100 mV/g sensitivity, 3211A series incorporates a ceramic shear crystal sensing element for high natural frequency, packaged in a rugged titanium housing. Units are case isolated to avoid EMI/ground loop interference.
The model 3211A series features a 10-32 radial connector and #8 or M4 thread screw mounting capabilities. The miniature thru hole design allows for the sensor to be turned 360° prior to securing for ease of installation. Units incorporate low noise JFET electronics and are hermetically sealed for reliable performance in high humidity and dirty environments.
Supplied Accessories: (1) model 6595 mounting screw (8-32)
Suggested Accessories: model 4110C current source power unit
Compatible Cables: 6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
3211A1/A2
Single Axis IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- 360° cable orientation
- Low noise JFET electronics
- 10 mV/g or 100 mV/g sensitivity
- 50g or 500g range
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 radial connector
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
500 g
500 g
Output
10 mV/g
100 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Thru Hole
Connection
10-32 Micro Coaxial
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3211A1
10 mV/g, 500g range
3211A2
100 mV/g, 50g range
