The 3097A series is a lightweight miniature IEPE accelerometer, offered with a sensitivity of 10 mV/g up to 500mV/g.
The Dytran model 3097AT series is a lightweight miniature IEPE accelerometer, offered with a sensitivity of 10 mV/g up to 500 mV/g and IEEE 1451.4 TEDS capabilities.

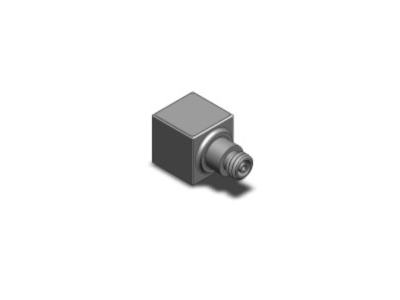

The accelerometer incorporates a ceramic shear sensing element and ultra low noise JFET electronics, with materials housed in a highly durable 0.4-inch (10.2 millimeter) laser welded titanium cube weighing just 4.3 grams. Both the 3097A and 3097AT series features a 5-40 tapped hole and industry standard 10-32 radial connector.
Supplied Accessories: (1) model 6580 mounting stud (5-40 to 5-40)
Suggested Accessories: model 4110C current source power unit, model 6222 adhesive mounting base, model 6265 magnetic mounting base
Compatible Cables: 6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
3097A/AT
Miniature IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- IEEE 1451.4 TEDS capabilities avaiable in 3097AT series
- Low noise JFET electronics
- Miniature cubic design
- 10 mV/g, 100 mV/g, or 500 mV/g sensitivity
- 10g, 50g or 500g range
- Max. temperature + 65°C, +82°C or +93°C
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
10 g
50 g
500 g
50 g
500 g
Output
10 mV/g
100 mV/g
500 mV/g
100 mV/g
500 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
5-40 Tapped Hole
Connection
10-32 Micro Coaxial
Min Temperature
-51 °C
Max Temperature
65 °C
82 °C
93 °C
82 °C
93 °C
Models
3097A1
10 mV/g, 500g range, max temp +93°C
3097A1T
10 mV/g, 500g range, max temp +93°C, TEDS capable
3097A2
100 mV/g, 50g range, max temp +82°C
3097A2T
100 mV/g, 50g range, max temp +82°C, TEDS capable
3097A3
500 mV/g, 10g range, max temp +65°C
3097A3T
500 mV/g, 10g range, max temp +65°C, TEDS capable
