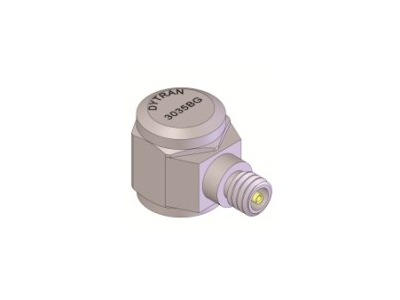

The Dytran model 3035BG series is a miniature IEPE accelerometer, available with 5 mV/g up to 100 mV/g sensitivity, an overall height of just 0.33 inches (8.3 millimeters) and a total weight of 2.5 grams.
Sensors feature a rugged stainless steel construction, an adhesive mount and 5-44 radial connector. Units are hermetically sealed for reliable operation in high humidity and dirty environments.
Recommended Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6014A, 6017A, 6021A, 6024A, 6025A, 6028A, 6029A, 6040A, 6056A, 6092A
3035BG
Miniature IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- 5 mV/g, 10 mV/g, 50 mV/g, or 100 mV/g sensitivity
- 50g, 100g, 500g, or 1000g range available
- 0.5 to 10,000 Hz (±5%)
- 5-44 radial connector
- Adhesive mount
- Weight: 2.5 grams
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
100 g
500 g
1000 g
100 g
500 g
1000 g
Output
5 mV/g
10 mV/g
50 mV/g
100 mV/g
10 mV/g
50 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
Adhesive
Connection
5-44 Coaxial
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3035B1G
10 mV/g, 500g range
3035B2G
50 mV/g, 100g range
3035B3G
5 mV/g, 1000g range
3035BG
100 mV/g, 50g range
