3023AT

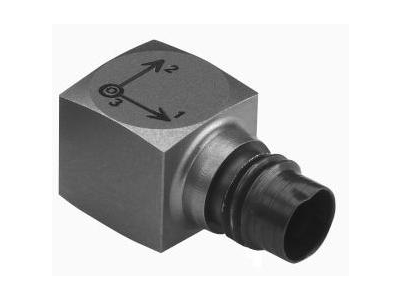

The Dytran model 3023AT series is a miniature triaxial IEPE accelerometer weighing just 4.5 grams, and model 3023A1T weighing 6.2 grams. Both models incorporate IEEE 1451.4 TEDS capabilities.

Available with a 10 mV/g sensitivity, the 3023AT series features an industry standard 4-pin radial connector and either an adhesive or 5-40 tapped hole mount. Design of the Dytran 3023AT series incorporates three quartz shear sensing elements, packaged in a laser welded titanium housing. Units are hermetically sealed for reliable operation in high humidity and dirty environments.

Supplied Accessories (model 3023A1T): (1) model 6580 mounting stud (5-40 to 5-40)

Recommended Accessories: model 4114B1 current source power unit, model 6273 petro mounting wax (model 3023AT), model 6222 adhesive mounting base (model 3023A1T)

Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
