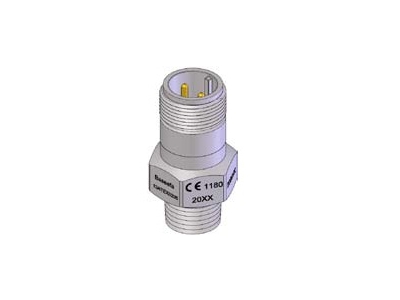

The Dytran model 2006V series is an ATEX certified, IEPE pressure sensor with a sensitivity of 10 mV/psi up to 100 mV/psi designed to measure dynamic pressure phenomena of 50 psi up to 500 psi at frequencies of up to 50 kHz. Design of the model 2006V series incorporates a quartz sensing element operating in compression mode, packaged in a rugged stainless steel housing, with a robust 2-pin MIL-C-5015 axial connector and a 1/4-18 NPT pipe thread mount.
The sensor is acceleration compensated to minimize the effects of vibration on the output signal and is hermetically sealed for reliable operation in high humidity and dirty environments. Units are also case isolated to avoid EMI/ground loop interference.
Recommended Accessories: model 4110C current source power unit
Compatible Cables: 6038A
2006V
IEPE Pressure Sensor
Dytran Instruments Inc.
- IEPE
- ATEX certified
- Acceleration compensated
- Fast rise time
- 10 mV/psi, 50 mV/psi or 100 mV/psi sensitivity
- 50 psi, 100 psi or 500 psi range
- 8,000 psi maximum pressure
Details
Specifications
Type
Piezoelectric
Flush Diaphragm
Flush Diaphragm
Full Scale
50 psi
100 psi
500 psi
100 psi
500 psi
Output
5 V DC
Precision
±1.00 % FS
Excitation
18 - 30 V DC
Technology
Voltage Mode (IEPE)
Material
316L Stainless Steel
Thread
1/4-18 NPT Male
Min Temperature
-40 °C
Max Temperature
121 °C
Models
2006V1
10 mV/psi, 500 psi range
2006V2
50 mV/psi, 100 psi range
2006V3
100 mV/psi, 50 psi range
