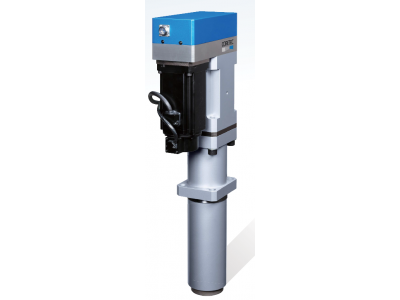

GS10, 10 kN (1 Ton) Assembly Servo Press
The GS10 is a high-performance servo press designed for medium-force press-fitting, assembly, and precision applications. With advanced force and speed control, it is ideal for demanding industrial processes requiring repeatability and accuracy.
Manufacturer : Coretec
Key Features
- Maximum Force Range 10 kN (1 Ton)
- Stroke ranges available – 100 mm and 250 mm
- Maximum actuator speed of 240 mm/sec
- Positional repeatability of ±0.01 mm
- Load cell accuracy of ±1.5% FS (Repeatability ±0.5% FS)
- Brake holding load capacity of 1 kN
Specifications
| Max Force | 10 kN |
| Max Speed | 240 mm/s |
| Stroke | 100 mm 250 mm |
Downloads
| Servo Press Brochure | Brochure |
