Wireless Data Transmission using Telemetry

For measurements on rotating components and moving machinery, we offer modern telemetry systems for a wide variety of tasks. Whether it be single-channel torque monitoring of a rotating shaft, multi-channel strain gauge and/or temperature measurements on a train wheel or non-contact power measurement on a vehicle drivetrain, these systems are intended for use in harsh environments. There are transmitters available for a large variety of sensors, such as strain gauge (quarter-, half- and full-bridge), thermocouples, PT100/1000, as well as IEPE sensors and voltage signals.

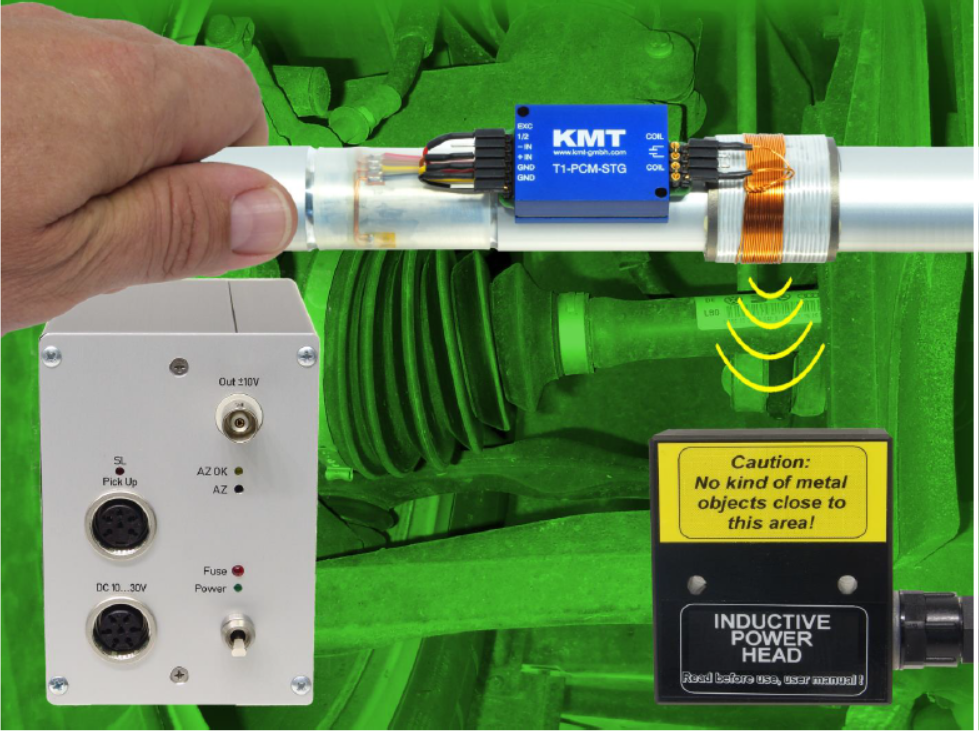

Single Channel Telemetry

  • Ideal for Strain Gauged rotating shafts
  • Full Bridge / Half Bridge or Type K TC
  • Battery or Inductive Powered Transmitter
  • Bandwidth up to 1200 Hz
  • Temperature Range, -10 to 80° (-40 to 125°C opt.)
  • Rectangular Transmitter or Flexible PCB

Application Examples

  • Automotive Drive Shafts
  • Steering Torque
  • Reciprocating Machinery

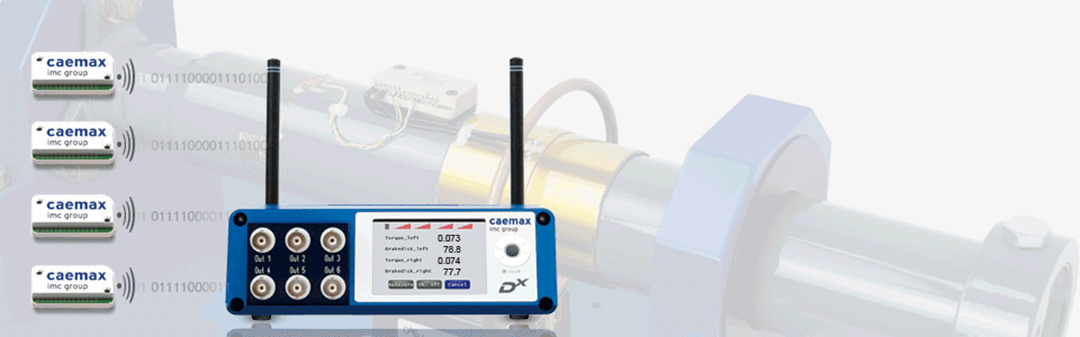

Multi Channel – CAEMAX - up to 16 inputs

  • Half or Full Bridge, Voltage or Thermocouple
  • Up to 16 Chns / Receiver with Digital Communication
  • Battery or Inductive Powered Transmitter
  • Sample Rate 4800 Hz across all channels
  • Temperature Range, -40 to 85° (-40 to 125°C opt.)
  • 6 Analog Output Chns / Receiver

Application Examples

  • Automotive Wheel & Drive Shafts
  • Steering Torque
  • Wind Turbine Blades & Shafts
  • Aircraft Control Surfaces
  • Helicopter/ Propeller Force, Vibration & Temperature
  • Reciprocating Machinery

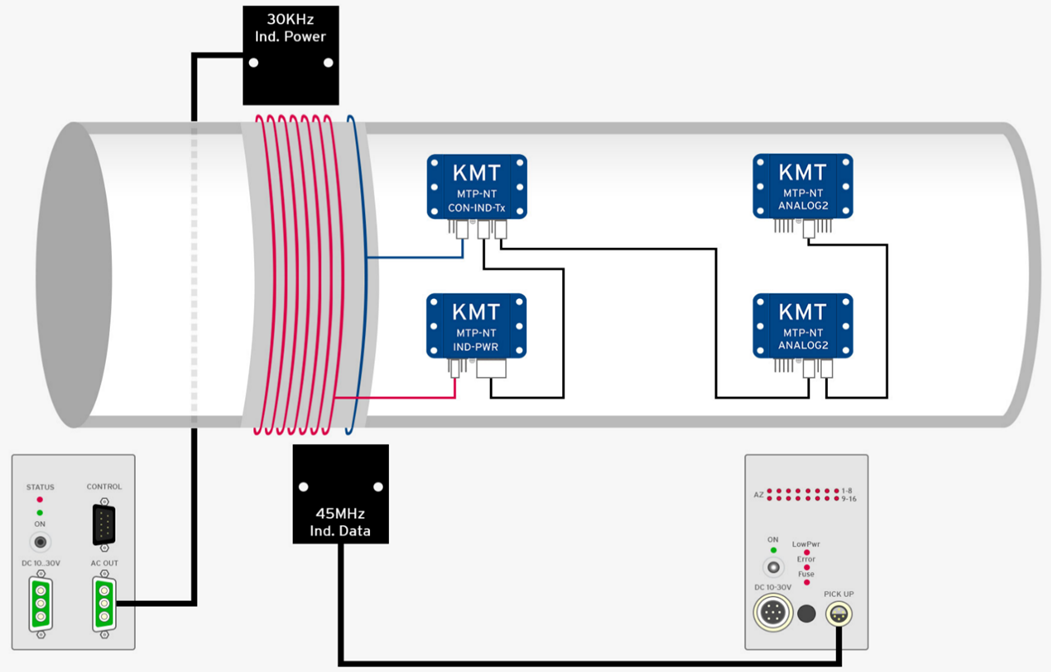

Multi-Channel – KMT - up to 256 Input Channels

  • Scalable up to 256 channels
  • ¼, ½ & Full Bridge Strain Gauge
  • IEPE, Voltage & Potentiometer Sensors
  • Up to 16kHz Sample Rate with Anti-Aliasing Filter
  • Analog Output or Digital Communication
  • Temperature Range, -40 to +85° (-40 to 125°C opt.)
  • Synchronization with CronosFlex data using DCF 77, GPS, IRIG-B or NTP

Application Examples

  • Automotive Wheel & Drive Shafts
  • Steering Torque
  • Wind Turbine Blades & Shafts
  • Aircraft Control Surfaces
  • Reciprocating Machinery
  • Rail Car Wheels & Power Train
  • Brake Disk Temperature
  • Industrial drive shafts / milling machines
