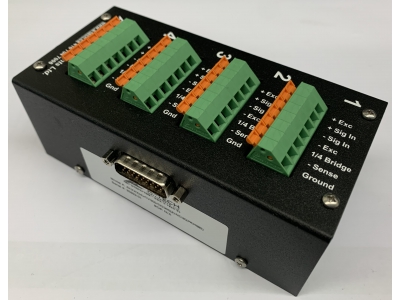

4_Chn Universal Quick Connect Termination Box
ZKXXX(4)-CV300_CD300(2)
4 Chn Universal Signal / Sensor Input Termination Box
- 4 channel of Spring Loaded Terminals
- Applies continuous pressure on conductors
- Ideal for Strain Gauge and Vdc inputs
- 2 x 15 pin & 1 x 26 pin DSUB output connectors
- Interconnecting Cables are available from 10ft up to 50ft.
