ZKXXX(4)-CV300

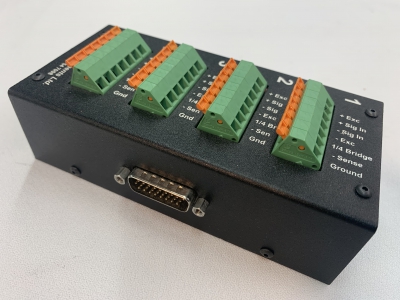

4 Chn Signal / Sensor Input Termination Box

  • 4 channel of Spring Loaded Terminals
  • Applies continuous pressure on conductors
  • Ideal for Strain Gauge and Vdc inputs
  • 1 x 26 pin DSUB High Density (3 row) output connector

Models

ZKXXX(4)-CV300
4 Chn Analog Input Spring Loaded Termination Box, from 1x DSUB26
ZKXXX(4)-CV300/CD300(2)-NC30
4 Chn Analog Input Spring Loaded Termination Box, from 1x DSUB26 or 2x DSUB15
