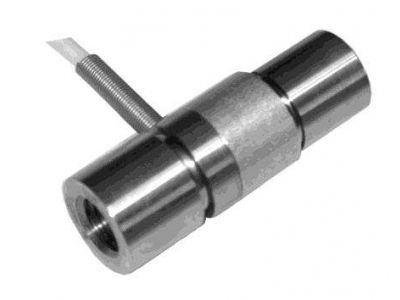

The XFTC322 series load cell is expertly designed for precise measurement of tension and compression forces in both static and dynamic settings. This robust sensor is equipped with metallic strain gages incorporated into a Wheatstone bridge circuit, enabling it to handle heavy loads up to 10 kN (2 klbf) with outstanding temperature stability.
Installation is streamlined with two M10 threaded studs, making the XFTC322 an ideal choice for a variety of industrial and OEM applications. Durability is further enhanced by a strain relief spring, which reinforces the cable output against mechanical stresses.
The XFTC322 series is recognized for its heavy-duty performance, high stiffness, and a wide range of temperature compensation, ensuring reliable operation under varying environmental conditions. For applications demanding higher protection levels, an optional IP rating improvement is available, making the load cell suitable for challenging environments.

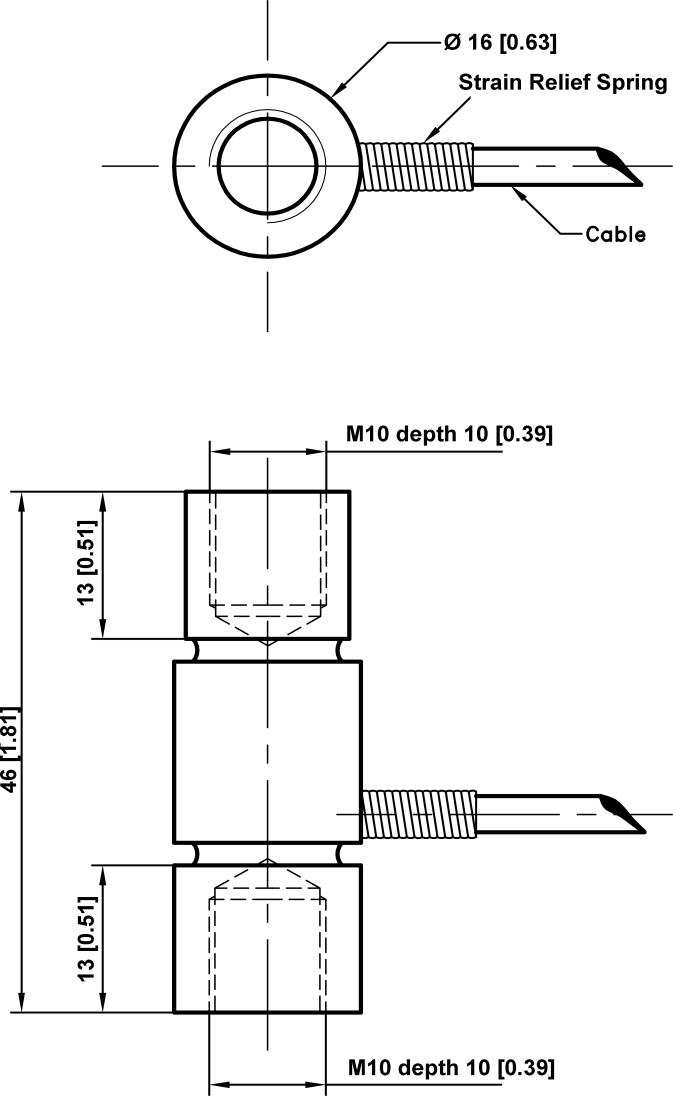

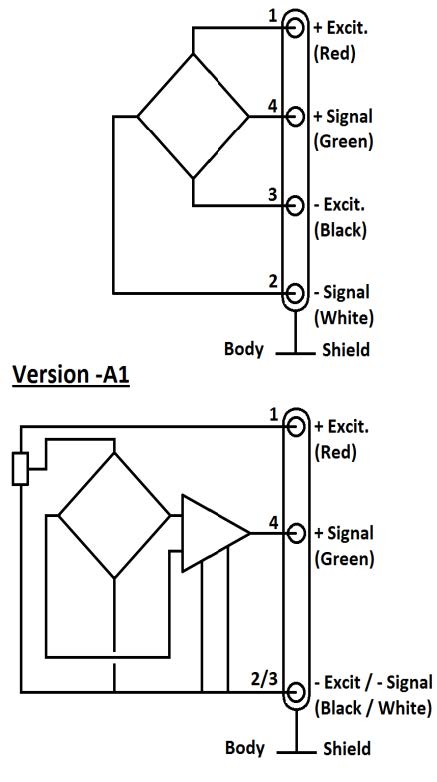

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
