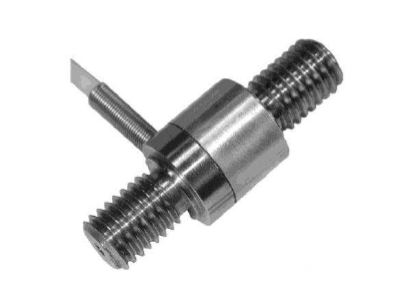

The XFTC302 series load cell is engineered for accurate tension and compression measurements in both static and dynamic settings. This series is equipped with metallic strain gages integrated into a Wheatstone bridge circuit, enabling the measurement of heavy loads up to 10,000 N (2000 lbf) with exceptional temperature stability.
Designed for easy integration into various industrial and OEM applications, the XFTC302 features two M10 threaded studs for straightforward installation. The inclusion of a strain relief spring ensures the durability of the cable output, enhancing the load cell's longevity and reliability in demanding environments.
For applications requiring measurement of lower forces or operating within different temperature ranges, the XFTC301 series offers a complementary solution, covering ranges from 2N to 2000N. This versatility allows for precise force measurement across a broad spectrum of requirements, ensuring the XFTC302 series is a comprehensive choice for a wide array of tension and compression measurement tasks.

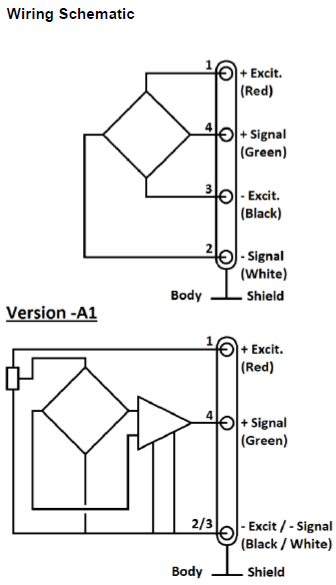

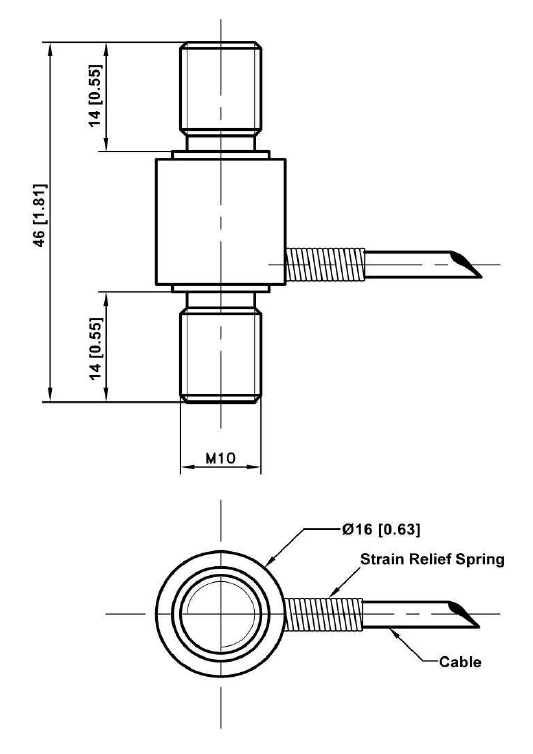

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
