WS17KT

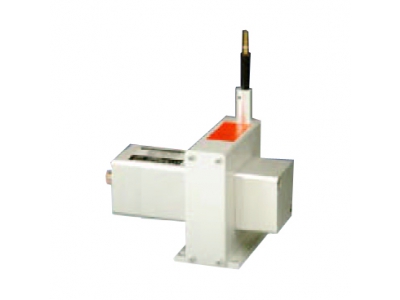

Industrial Cable Actuated Position Sensor

ASM Sensors, Gmbh

  • Cable Actuated
  • Potentiometric, Analog, Programmable Analog, ADSI or ADCAN Output
  • Rectangular Profile Housing
  • Aluminum/Stainless Steel
  • Connection: Male 8-pin M12 Connector
  • Connection: 5-pin M12 Connector (ADCAN Output)
  • Stainless Steel Cable

Specifications

Type
Draw Wire
Full Scale
1500 mm
2000 mm
2500 mm
3000 mm
4000 mm
5000 mm
6250 mm
10000 mm
12500 mm
15000 mm
Output
0 - 10 V DC
Potentiometric
4 - 20 mA
SSI
CANopen
Non-Linearity
±0.05 % FS
Resolution
Infinitesimal
Excitation
8 - 36 V DC
11 - 27 V DC
12 - 27 V DC
18 - 27 V DC
32 V DC
IP Rating
IP64
Min Temperature
-20 °C
Max Temperature
85 °C

Models

WS17KT

Downloads

WS17KT Compact Cable Actuated Position Sensor
Datasheet
