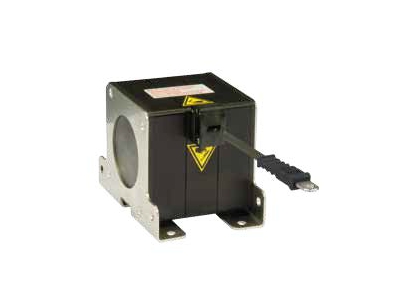

WB85

Tape Actuated Position Sensor

ASM Sensors, Gmbh

  • Tape Actuated
  • Analog, Programmable Analog, SSI or CAN Output
  • Rectanglular Profile Housing
  • Plastic/Stainless Steel
  • Connection: Analog: 5-pin M12 Connector
  • Connection: SSI: 8-pin M12 Connector
  • Connection: CAN: 5-pin M12 Connector

Specifications

Type
Draw Wire
Full Scale
5000 mm
6000 mm
Output
0.5 - 4.5 V DC
0.5 - 10 V DC
4 - 20 mA
SSI
CANopen
CAN SAE J1939
Non-Linearity
±0.05 % FS
±0.10 % FS
Resolution
0.05 mm
Excitation
8 - 36 V DC
10 - 36 V DC
IP Rating
IP67
IP69K
Min Temperature
-40 °C
Max Temperature
85 °C

Models

WB85

Downloads

WB85 Tape Actuated Position Sensor
Datasheet
