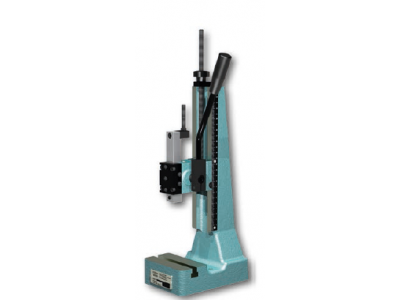

VZ 150-40

Manual Rack and Pinion press

Mäder Pressen

  • Manual Rack and Pinion press
  • Capacity: 1.5 kN
  • Working stroke: 40 mm
  • Throat: 63 mm
  • Daylight: 35 - 235 mm
  • Table size: 110 x 65 mm
  • Ram bore Ø x Depth: 10H7 x 25 mm

Details

VZ range

The square ram has significant advantages compared with the round ram:

- Absolute protection against twisting

- Press ram guide free from play

- Readjustable guide rails for square ram

- Large tool locating surface

- Guides in tool therefore usually unnecessary

- Practically maintenance-free operation

mäder rack and pinion presses with square ram are ideal tools for
manufacturing small precision parts with tight tolerances in small and
medium-sized batches where automation would be too cost-intensive.

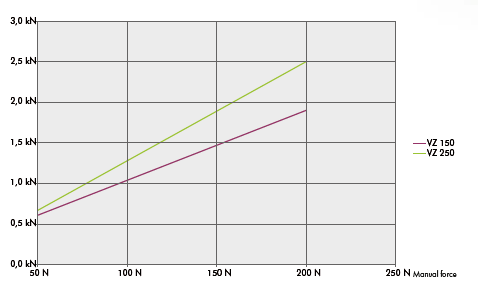

Manual lever with ergonomic user comfort

- Can be turned through 360°: adaptable for any body size and
application.

- Lever angled to the side: free view of work area and ergonomically
comfortable position.

- R/L Version: simple and easy conversion for left-handers without
losing the tool setting. Ideal for job sharing on one press.

Specifications

Type of Press
Rack and Pinion Press
Capacity
1.5 kN
Working Stroke
40 mm
Daylight Start
35 mm
Daylight End
235 mm
Table Size
110 x 65 mm
Ram Dimensions
10H7 x 25 mm
Ram Size
20 mm

Models

VZ 150-40
VZ 150-40 HS
VZ 150-40 with Return travel lock
VZ 150-40 HS MICRO
VZ 150-40 with Return travel lock and Micrometer stop
VZ 150-40 HS MICRO Z
VZ 150-40 with Return travel lock, Micrometer stop and Counter
VZ 150-40 HS Z
VZ 150-40 with Return travel lock and Counter
VZ 150-40 MICRO
VZ 150-40 with Micrometer stop
VZ 150-40 MICRO Z
VZ 150-40 with Micrometer stop and Counter
VZ 150-40 R/L
VZ 150-40 Left/right-hander version
VZ 150-40 R/L MICRO
VZ 150-40 Left/right-hander version with Micrometer stop
VZ 150-40 R/L TB
VZ 150-40 Left/right-hander version with Table bore 12H7
VZ 150-40 R/L TB MICRO
VZ 150-40 Left/right-hander version with Table bore 12H7 and Micrometer stop
VZ 150-40 TB
VZ 150-40 with Table bore 12H7
VZ 150-40 TB 1 HS Z
VZ 150-40 with Table bore 12H7, 1 Return travel lock and Counter
VZ 150-40 TB HS
VZ 150-40 with Table bore 12H7 and Return travel lock
VZ 150-40 TB HS MICRO
VZ 150-40 with Table bore 12H7, Return travel lock and Micrometer stop
VZ 150-40 TB HS MICRO Z
VZ 150-40 with Table bore 12H7, Return travel lock, Micrometer stop and Counter
VZ 150-40 TB MICRO
VZ 150-40 with Table bore 12H7 and Micrometer stop
VZ 150-40 TB MICRO Z
VZ 150-40 with Table bore 12H7, Micrometer stop and Counter
VZ 150-40 TB Z
VZ 150-40 with Table bore 12H7 and Counter
VZ 150-40 Z
VZ 150-40 with Counter
