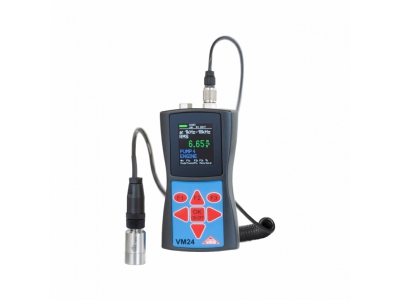

VM24

The VM24 Vibration Meter is an essential tool for professionals focusing on machinery maintenance and condition monitoring. It facilitates the measurement of running smoothness on rotating and reciprocating machines, in compliance with ISO 20816-1, ISO 10816-6, IEC 60034-14, and more. The VM24 extends its capabilities to the assessment of bearing vibrations, adhering to standards such as VDI 3832, and providing a comprehensive analysis tool for a wide range of industrial applications.

Equipped with electronic VMID point detection through the sensor base of model KS82L, the VM24 streamlines the process of conducting route measurements. This feature, coupled with the trend display functionality, empowers users to efficiently monitor the condition of machinery over time, identifying potential issues early and minimizing downtime.

For enhanced data management, the VM24 includes a USB interface and comes with PC software for measuring point management according to the MIMOSA convention and for detailed measurement evaluation. This software support ensures that users can easily organize, analyze, and store their measurement data, enhancing the overall maintenance strategy.

Designed for the convenience of field technicians, the VM24 boasts a compact, pocket-sized form factor. This makes it not only easy to carry but also ensures that precision and functionality are not sacrificed for portability.

Below you can find a comparison between the VM2x series

VM22

• Velocity
  • 0.1 - 1000 mm/s
  • 10 - 1000 Hz (ISO 10816)

• Parameters
  • true RMS
• Memory, Interface
  • 16,000 values/USB

    ---

VM23  (Main frequency display)

• Velocity
  • 0.1 - 1000 mm/s
  • 2 - 100 Hz
  • 10-1000 Hz
• Parameters
  • true RMS
  • peak-peak
• Memory, Interface
  • 16,000 values/USB
• Displacement
  • 0.01 - 60 mm
  • 3 - 60 / 3 - 200 Hz
• Frequency analysis
  • 512 lines (no graphics)

    ---

VM24

• Velocity
  • 0.1 - 1000 mm/s
  • 2 - 300 Hz
  • 10 - 1000 Hz
• Parameters
  • true RMS
  • peak
• Memory, Interface
  • 16,000 values/USB
• Displacement
  • 0.01 - 60 mm
  • 2 - 300 Hz
• Acceleration
  • 0.1 - 240 m/s²
  • 0.2 - 10,000 Hz
  • 3 - 1000 Hz
  • 1000 - 10,000 Hz

    ---

VM25 ( with FFT)

• Velocity
  • 1 - 1000 mm/s
  • 2 - 300 Hz
  • 10 - 1000 Hz
• Parameters
• • true RMS
  • peak
  • crest
  • K(t)
• Memory, Interface
  • 16,000 values/USB
• Displacement
  • 01 - 60 mm
  • 2 - 300 Hz
• Acceleration
  • 1 - 240 m/s²
  • 2 - 10,000 Hz
  • 3 - 1000 Hz
  • 1000 - 10,000 Hz
• Rotary speed (optical)
  • 1 - 9999 rpm
• Frequency analysis
  • 127 lines FFT
