VM22

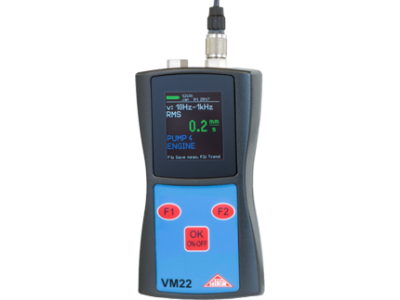

The VM22 Vibration Meter is a compact, pocket-sized tool designed for the precise measurement of running smoothness on both rotating and reciprocating machines. It is compliant with international standards such as ISO 20816-1, ISO 10816-6, and IEC 60034-14, making it an essential device for ensuring machinery meets global benchmarks.

It features an electronic measurement point detection system that works seamlessly with VMID points via the sensor base of the model KS82L, which significantly streamlines the process of route measurements. The trend display functionality of the VM22 provides users with the ability to monitor and track the condition of equipment over time, allowing for the early detection of potential issues.

With its integrated USB interface, the VM22 ensures that data transfer is as straightforward as the measurement process itself. Users can easily connect the meter to a computer for data analysis, archiving, or reporting.

Built for convenience and ease of use, the VM22 does not require extensive training, allowing technicians to perform reliable and efficient vibration assessments directly out of the box.

Below you can find a comparison between the VM2x series

VM22

• Velocity
  • 0.1 - 1000 mm/s
  • 10 - 1000 Hz (ISO 10816)

• Parameters
  • true RMS
• Memory, Interface
  • 16,000 values/USB

    ---

VM23  (Main frequency display)

• Velocity
  • 0.1 - 1000 mm/s
  • 2 - 100 Hz
  • 10-1000 Hz
• Parameters
  • true RMS
  • peak-peak
• Memory, Interface
  • 16,000 values/USB
• Displacement
  • 0.01 - 60 mm
  • 3 - 60 / 3 - 200 Hz
• Frequency analysis
  • 512 lines (no graphics)

    ---

VM24

• Velocity
  • 0.1 - 1000 mm/s
  • 2 - 300 Hz
  • 10 - 1000 Hz
• Parameters
  • true RMS
  • peak
• Memory, Interface
  • 16,000 values/USB
• Displacement
  • 0.01 - 60 mm
  • 2 - 300 Hz
• Acceleration
  • 0.1 - 240 m/s²
  • 0.2 - 10,000 Hz
  • 3 - 1000 Hz
  • 1000 - 10,000 Hz

    ---

VM25 ( with FFT)

• Velocity
  • 1 - 1000 mm/s
  • 2 - 300 Hz
  • 10 - 1000 Hz
• Parameters
• • true RMS
  • peak
  • crest
  • K(t)
• Memory, Interface
  • 16,000 values/USB
• Displacement
  • 01 - 60 mm
  • 2 - 300 Hz
• Acceleration
  • 1 - 240 m/s²
  • 2 - 10,000 Hz
  • 3 - 1000 Hz
  • 1000 - 10,000 Hz
• Rotary speed (optical)
  • 1 - 9999 rpm
• Frequency analysis
  • 127 lines FFT
