VM-BAL Kit

Rotating Shaft Balancing System

MMF

  • Automatic operation by rotary speed detection
  • Simple installation and operation
  • User guidance by clear text instructions simplifies operation
  • Measuring runs can be saved and continued later
  • Auxiliary functions like test mass and RPM recommendation support the user

Details

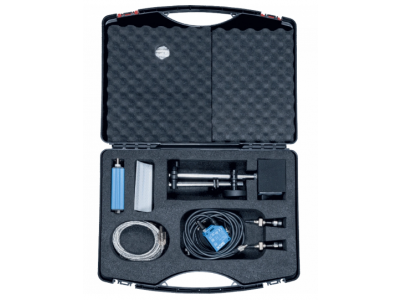

VM-BAL+ Kit One: 1 VM-BAL+; M312B; KS74C10 with 5 m cable; magnet 008; photoel. reflex switch with magn. stand

Contents:

  • M312B IEPE/USB interface
  • KS74C10 accelerometer with 5 m cable
  • 008 clamping magnet
  • VM-PS photoelectric reflex switch



VM-BAL+ Kit Two: 2 VM-BAL+; M312B; 2 KS74C10 with 5 m cable; magnet 008; photoel. reflex switch with magn. stand

Contents:

  • M312B IEPE/USB interface
  • 2 pieces KS74C10 accelerometer with 5 m cable
  • 2 pieces 008 clamping magnet
  • VM-PS photoelectric reflex switch

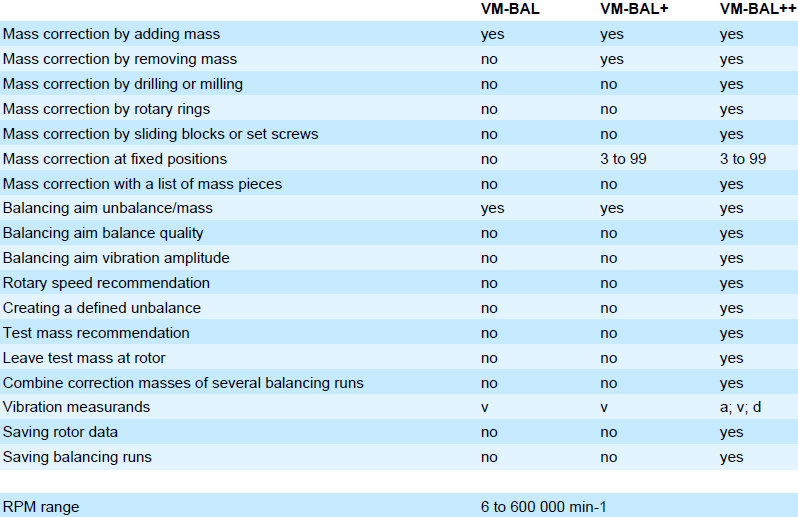

Software Function Table:

Video step-by-step process for precision Balancing for VM-BAL:

Models

VM-BAL+ Kit One
VM-BAL+ Kit Two

Downloads

VM-BAL Datasheet
Datasheet
Application - Balancing with VM-BAL (AN31e)
App Note
Application - Balancing airplane propellers (AN33e)
App Note
