VK 2500-40

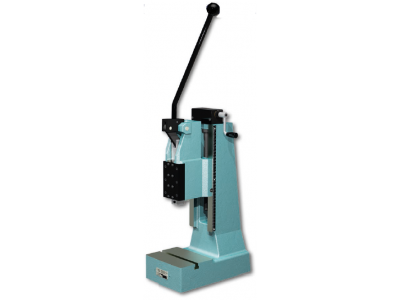

Manual toggle press

Mäder Pressen

  • Manual toggle press
  • Capacity: 40 mm
  • Working stroke: 40 mm
  • Throat: 100 mm
  • Daylight: 60 - 290 mm
  • Table size: 185 x 145
  • Ram bore Ø x Depth: 10H7 x 30 mm

Details

VK range

The extra-powerful hand-operated toggle presses of the VK range
are especially suitable for the frequently changing applications in
modelmaking and in the workshop. Their high forces of up to 30 kN
enable them to be flexibly used for widely differing applications.

The Advantages:

- Choice of different stroke lengths

- Extra-stable press base design

- Daylight easily adjustable by means of the
standard press head threaded spindle height adjustment

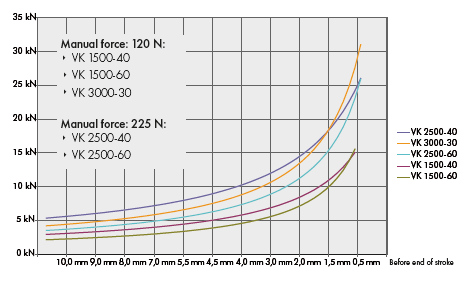

- The nominal force of the press can be achieved with
moderate applied force

Specifications

Type of Press
Toggle Press
Capacity
25.0 kN
Working Stroke
40 mm
Daylight Start
60 mm
Daylight End
290 mm
Table Size
185 x 145 mm
Ram Dimensions
10H7 x 30 mm
Ram Area
31 x 31

Models

VK 2500-40
VK 2500-40 DP
VK 2500-40 with Precision ram adjustment
VK 2500-40 DP HS
VK 2500-40 with Precision ram adjustment and Return travel lock
VK 2500-40 DP HS Z
VK 2500-40 with Precision ram adjustment, Return travel lock and Counter
VK 2500-40 DP Z
VK 2500-40 with Precision ram adjustment and Counter
VK 2500-40 HS
VK 2500-40 with Return travel lock
VK 2500-40 HS Z
VK 2500-40 with Return travel lock and Counter
VK 2500-40 TB
VK 2500-40 with Table bore 12H7
VK 2500-40 TB DP
VK 2500-40 with Table bore 12H7 and Precision ram adjustment
VK 2500-40 TB DP HS
VK 2500-40 with Table bore 12H7, Precision ram adjustment and Return travel lock
VK 2500-40 TB DP HS Z
VK 2500-40 with Table bore 12H7, Precision ram adjustment, Return travel lock and Counter
VK 2500-40 TB DP Z
VK 2500-40 with Table bore 12H7, Precision ram adjustment and Counter
VK 2500-40 TB HS
VK 2500-40 with Table bore 12H7 and Return travel lock
VK 2500-40 TB HS Z
VK 2500-40 with Table bore 12H7, Precision ram adjustment and Counter
VK 2500-40 TB Z
VK 2500-40 with Table bore 12H7 and Counter
VK 2500-40 Z
VK 2500-40 with Counter
