TVL700

Shibaura Toshiba 6-Axis, Vertical Articulated Robot

Shibaura Machine Co. Ltd. - TM Robotics

  • Tap holes provided on four locations
  • Alternative Installations (Side Mounted)
  • 1st arm equipped with T-groove as standard
  • I/O panel options
  • IP65 Option (dust-proof and drip-proof protection is available)

Details

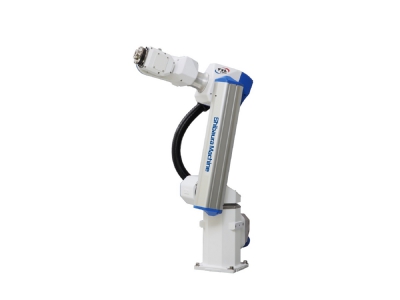

The Shibaura TVL700 Robot with a reach of 700mm and a payload of 4kg really packs a punch as it delivers a high speed, highly accurate energy saving performance at a low cost.  It also saves on space delivering all of the functionality that you would insist on from a Six-Axis Robot, but with a fraction of the expected foot-print within your production line.

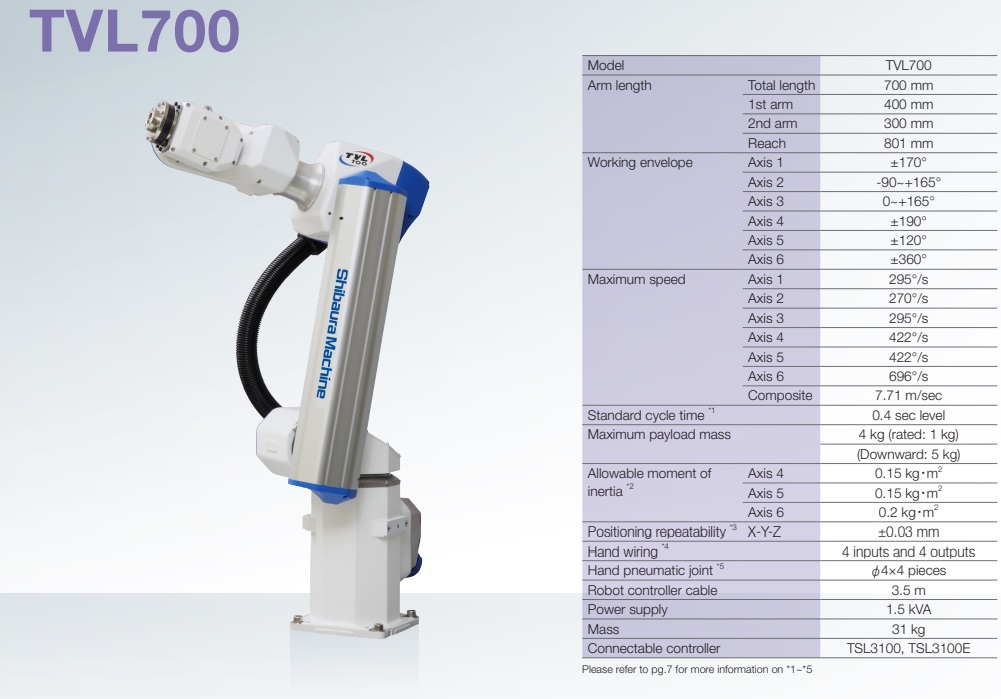

Specifications

Type
6 Axis
Number of Axis
6
Arm Length
Full Length 700 mm
Maximum Speed
7710 mm/sec (Axis 1 and 2 composite)
Maximum Payload Mass
4 kg
Positioning Repeatability
±0.03 mm
Controllers
TS3100

Models

TVL700
6 Axis, 0.4s Standard Cycle Time with 4Kg max payload mass

Downloads

TVL700
