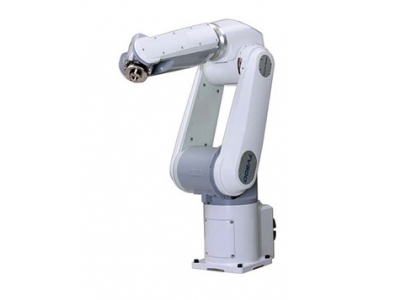

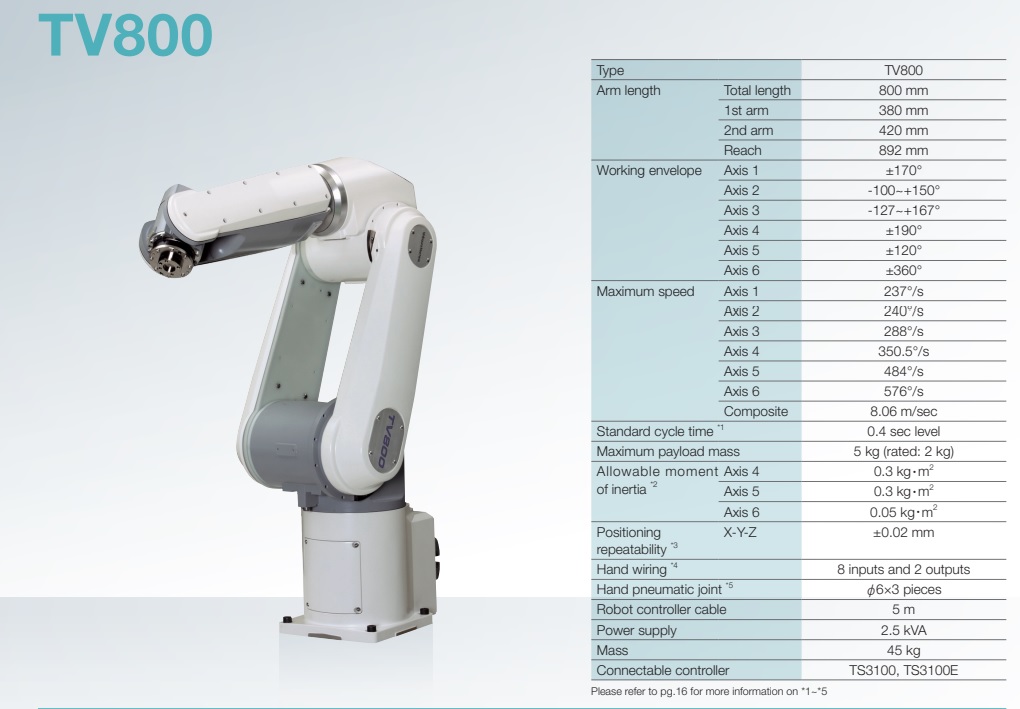

The Shibaura TV800 Robot has a total arm length of 800mm, a reach of 892mm and a composite maximum speed of 8.06 metres per second. The robot has a maximum cycle time of 0.4 to 0.5 seconds, repeatability of ±0.02mm and a maximum payload of five kilograms. The new six axis robot uses an absolute position detection system, with a robust AC motor at its heart.
