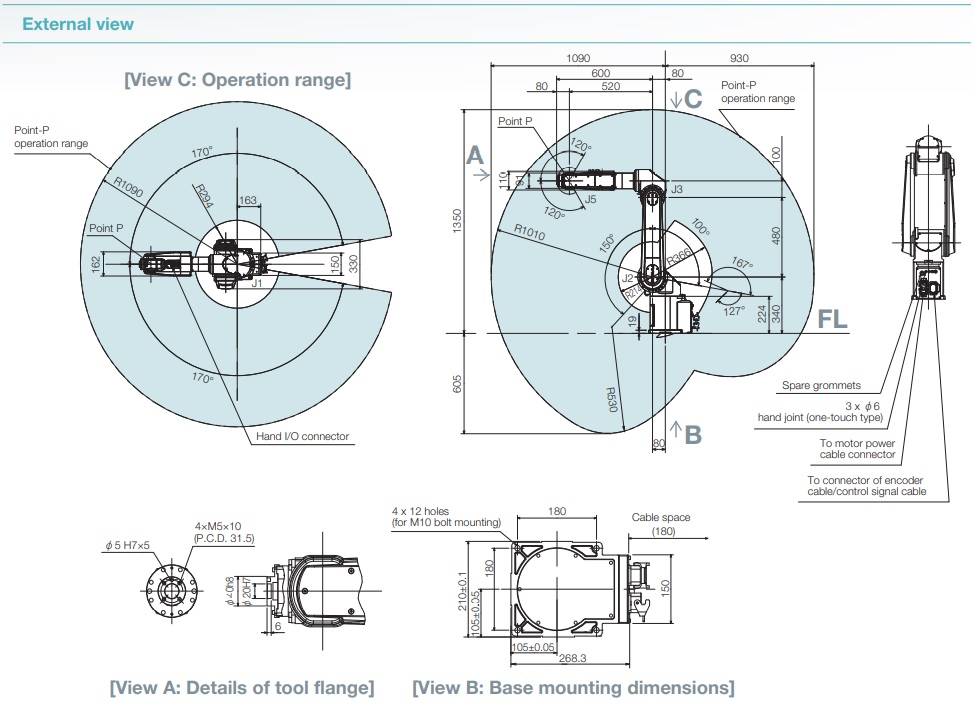

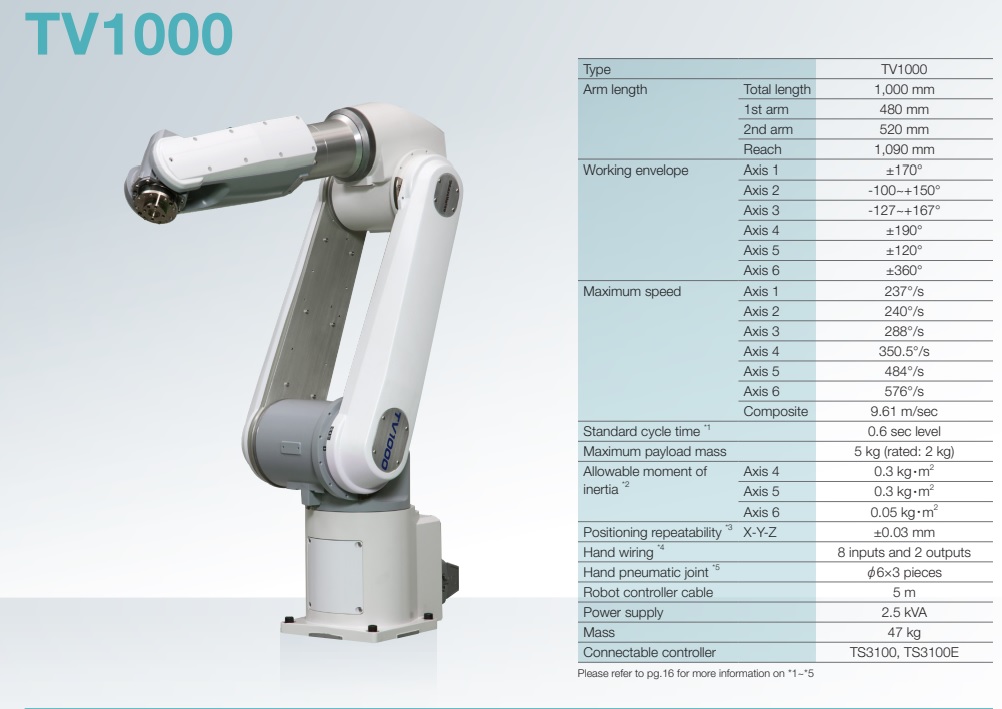

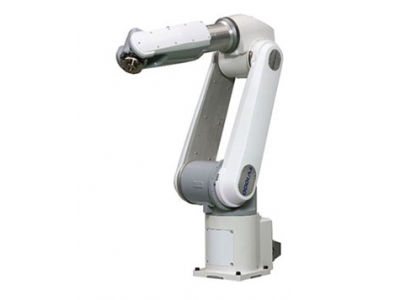

The Shibaura TV1000 Robot has a total arm length of 1000mm, a reach of 1090mm and a composite maximum speed of 9.61 metres per second. The robot has a maximum cycle time of 0.6 seconds, repeatability of ±0.03mm and a maximum payload of five kilograms. The new six axis robot uses an absolute position detection system, with a robust AC motor at its heart.
