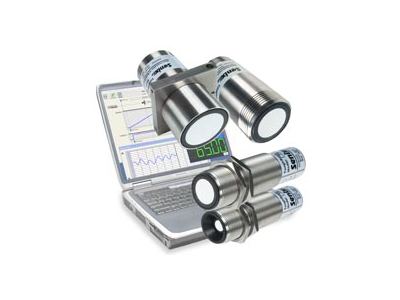

TSPC-30S1

Ultrasonic Distance Sensor

Senix Corporation

  • Ultrasonic
  • SenixVIEW Software Included
  • Cylindrical Profile Housing
  • 316 Stainless Steel Housing
  • Connection: 2m Integral Cable
  • Suited for Harsh Environments
  • CE Certified

Specifications

Type
Ultrasonic
Full Scale
102 - 3000 mm
4300 mm
Output
0 - 5 V DC
0 - 10 V DC
4 - 20 mA
RS-232
RS-485
Non-Linearity
±0.20 % FS
Resolution
0.087 mm
Excitation
10 - 30 V DC
IP Rating
IP68
Min Temperature
-40 °C
Max Temperature
70 °C

Models

TSPC-30S1
4300 mm Max Range

Downloads

TSPC-30S1 Ultrasonic Distance Sensor
Datasheet
