Toshiba's THL500 Robot features an arm length of 500mm and payload mass of 10kg. It also features an envelope of 4 axes, a Z-axis rotation of 360 degrees, and max speed of 6.3m/s.

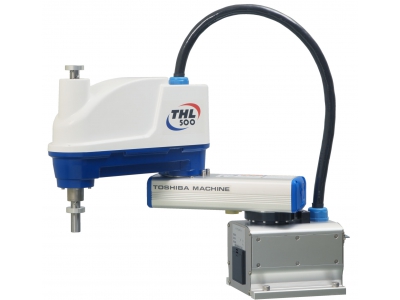

THL500
Toshiba SCARA, Multi-Joint Robot
Shibaura Machine Co. Ltd. - TM Robotics
- Low Cost
- Light Weight (up to 50% lighter than previous models)
- Energy-efficient (up to 50% reduction in required power-supply capacity compared with previous models)
- 0.45s Cycle time with 2 kg load
Details

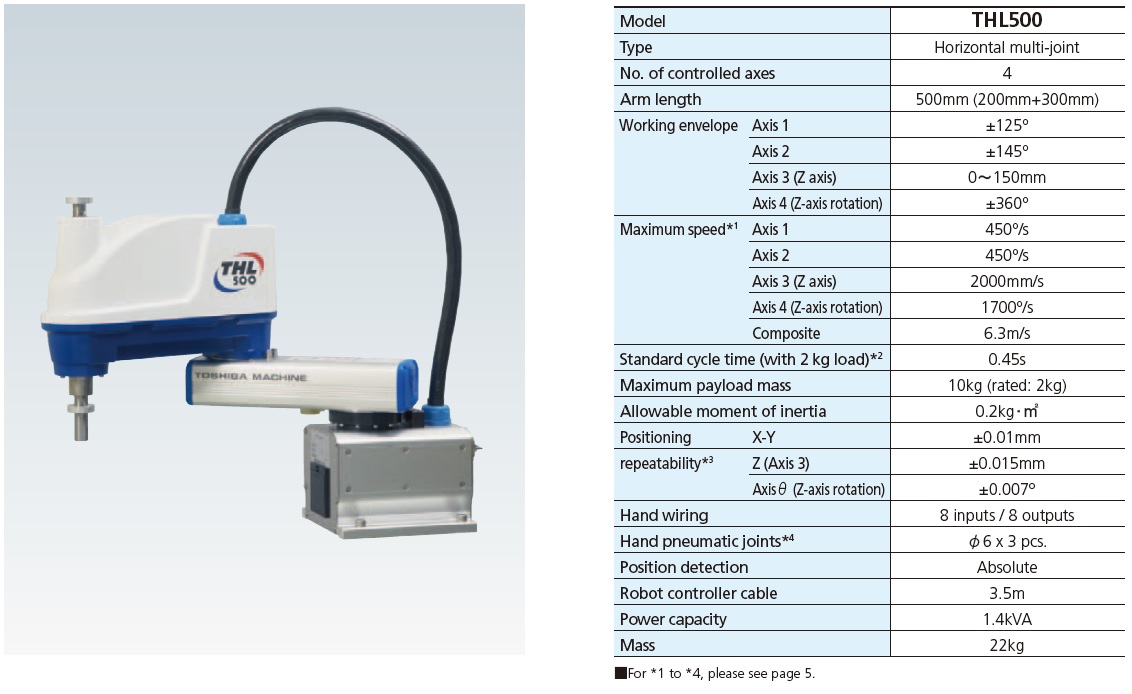

Specifications
Type
SCARA
Number of Axis
4
Arm Length
Full Length 500 mm
Maximum Speed
6300 mm/sec (Axis 1 and 2 composite)
Standard Cycle Time
0.45 sec
Maximum Payload Mass
10 kg (rated 2 kg)
Positioning Repeatability
Axis Z (Axis 3) ±0.015 mm
Axis C (Axis 4) ±0.007 deg
X-Y ±0.01 mm
Axis C (Axis 4) ±0.007 deg
X-Y ±0.01 mm
Hand Wiring
8 inputs and 8 outputs
Controllers
TSL3000
Models
THL500
4 Axis, 0.45s Standard Cycle Time (with 2Kg Load) 10Kg max payload mass
Downloads
THL500_TS3000
