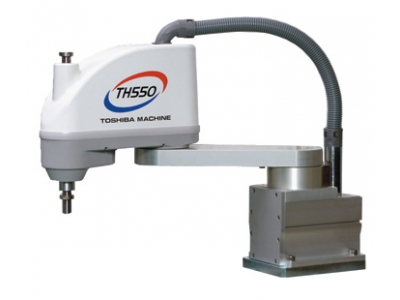

High speed and high precision Toshiba SCARA robot with an arm length of 550m and capable of handling payloads up to 5 Kgs. Has no problem keeping up with Toshiba's Cartesian Robot.
TH550A
Shibaura Toshiba SCARA, Multi-Joint Robot
Shibaura Machine Co. Ltd. - TM Robotics
- Compact: arm length 550mm
- High Load Capacity: Max 5Kg
- High Speed: Cycle time 0.30s
- CRB Specifications: Class 10 equivalent available (0.1 micro m)
- Built-in PLC
Details

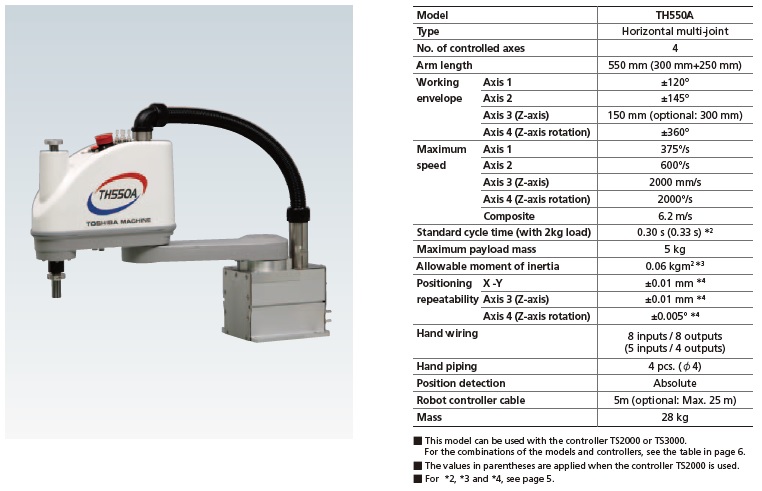

Specifications
Type
SCARA
Number of Axis
4
Arm Length
Full Length 550 mm
Maximum Payload Mass
5 kg (rated 2 kg)
Models
TH550A
4 Axis, 0.30s Standard Cycle Time (with 2Kg Load) 5Kg max Payload
Downloads
TH550A_TS3000
