TH180

Shibaura Toshiba SCARA, Multi-Joint Robot

Shibaura Machine Co. Ltd. - TM Robotics

  • Compact: arm length 180mm
  • High load Capacity: Maximum 2kg
  • High Speed: cycle time 0.35s
  • Clean Room Design: Class 10 Equivalent (0.3 micro m)
  • Built in PLC: ready for touch-Sensitive Operation Panel

Details

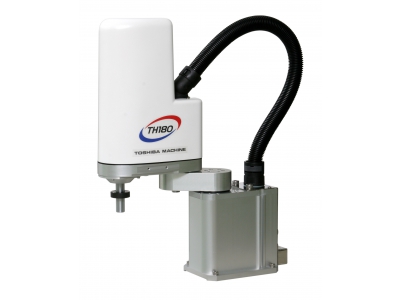

The smallest model of our SCARA robot line, the Toshiba TH180 Robot has a compact body with 180mm arm span and a maximum payload of 2kg (4.4lbs.) ideal for use in high precision applications. This robot is capable of handling several parts at the same time.

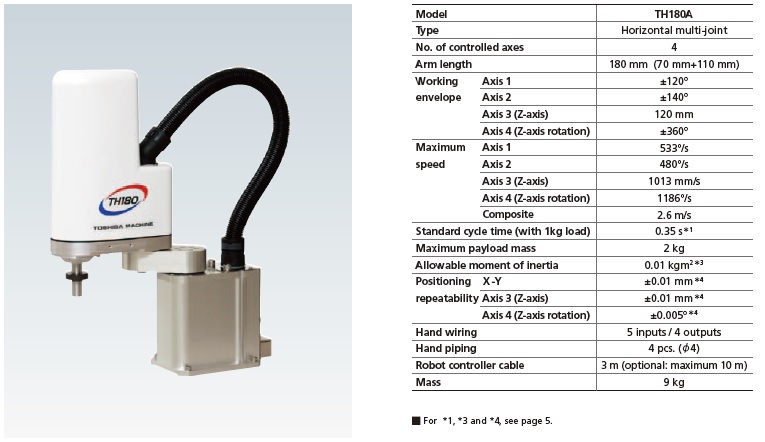

Specifications

Type
SCARA
Number of Axis
4
Arm Length
Full Length 180 mm
Maximum Speed
2600 mm/sec
Maximum Payload Mass
2 kg
Controllers
TS1000

Models

TH180
4 Axis, 0.35s Standard Cycle Time (with 1Kg Load) 2Kg max Payload

Downloads

TH180_TS1000
Datasheet
