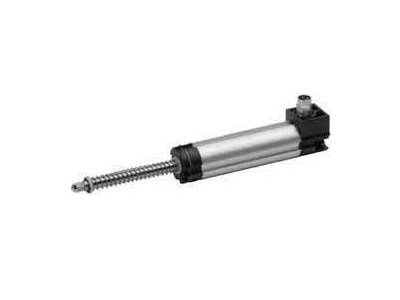

TEXR

Return Spring Potentiometric Position Transducer

Novotechnik

  • Potentiometer with Return Spring
  • Rod Profile Housing
  • Anodized Aluminum Housing
  • Connection: 3-pin Round M8 Connector or 2m or 5m Integral Cable
  • Threaded Shaft Allows Customer-Defined Mechanical Interfaces
  • Long Life up to 50 Million Movements

Specifications

Type
Potentiometer
Full Scale
10 mm
25 mm [0.984"]
75 mm
100 mm
125 mm
150 mm
175 mm
200 mm
Output
Potentiometric
Non-Linearity
±0.05 % FS
±0.10 % FS
±0.20 % FS
±0.25 % FS
Resolution
0.01 mm
Excitation
0 - 42 V DC
IP Rating
IP54
Min Temperature
-40 °C
Max Temperature
85 °C

Models

TEXR
