TEL1-PCM

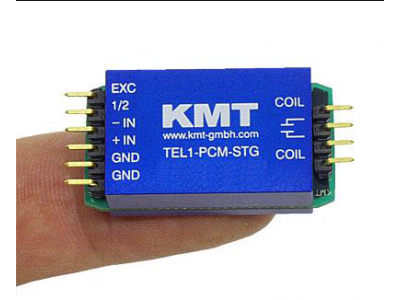

Strain Gauge Telemetry System

  • Easy to assemble and operate
  • Full- and half bridge Strain Gauge configurations
  • Auto-Zero adjustment can be Set on the receiver
  • Gain: 250-8000 can be Set on the receiver side
  • Transmitter Distance to Receiver up to 25mm (35mm Optional)
  • Signal bandwidth 0…1200Hz (-3dB)
  • Output +/-10V and digital for interface (Option)

Specifications

Input Types
Strain Gauge
Temperature
No. of Inputs
1-2
Output
Analog

Models

TEL1
Single Channel Strain Gauge Telemetry Transmitter
TEL1-PCM
Single Channel Strain Gauge Telemetry System
TEL1-PCM-PHPU-L
Inductive data pickup and power head L & 5m Cable
TEL1-PCM-SET-1_STG
Telemetry System for strain gages on a shaft diameter < 400 mm, Inductive Power Head 7 Signal Pickup not included
TEL1-PCM-SET-2_THK-C
Telemetry System for K type TC for shaft diameter < 400 mm, Inductive Power Head 7 Signal Pickup not included
TEL1-PCM-TH-K
K Type Thermocouple Transmitter
TEL1-SP-H-D101-150mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 101 mm to 150 mm
TEL1-SP-H-D15-30mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 15 mm to 30 mm
TEL1-SP-H-D151-250mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 151 mm to 250 mm
TEL1-SP-H-D251-350mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 251 mm to 350 mm
TEL1-SP-H-D31-50mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 31 mm to 50 mm
TEL1-SP-H-D351-500mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 351 mm to 500 mm
TEL1-SP-H-D501-800mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 501 mm to 800 mm
TEL1-SP-H-D51-100mm
Split Housing, epoxy resin, 2 half rings for shaft O.D. from 51 mm to 100 mm

Downloads

TEL1-PCM-IND_datasheet_ATI_2018
Brochure
KMT-Wind Energy Hydropower Telemetry Application examples
App Note
