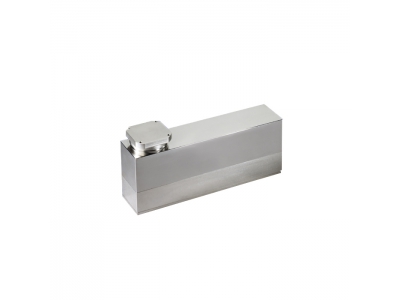

SW-FS

EMFR Weigh Cell

Wipotec Gmbh

Weighing range up to 2,000 g, covered by 7 models
Additive dead load range up to 2,000 g
Multi-track applications starting from 60 mm centerline distance
Binary I/O channels with customer-specific functions
Interface 1: CAN or RS 422
Interface 2: RS 232 for service and configuration
Anodized Aluminum Housing

Details

The series SW-FS Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where small frame sizes are demanded.

By using GMP-tailored construction, all Weigh Cells are also suitable for use in pharmaceutical industrial plants.

Specifications

Type

Weigh Cell

Full Scale

20 g
50 g
100 g
200 g
500 g
1000 g
2000 g

Dead Load

150 g
300 g
400 g
600 g
1000 g
2000 g

Interface

RS232
RS422
CANbus
Binary I/O
Bus Operation

Linearity

0.0001 g
0.0002 g
0.0004 g
0.001 g
0.002 g
0.004 g
0.01 g

Resolution

0.00005 g
0.0001 g
0.0002 g
0.0005 g
0.001 g
0.002 g
0.005 g
0.01 g
0.02 g

IP Rating

IP44

Models

SW-100/400-FS

Weigh Range 100 g, Dead Load 400 g

SW-1000/1000-FS

Weigh Range 1000 g, Dead Load 1000 g

SW-20/150-FS

Weigh Range 20 g, Dead Load 150 g

SW-200/600-FS

Weigh Range 200 g, Dead Load 600 g

SW-2000/2000-FS

Weigh Range 2000 g, Dead Load 2000 g

SW-50-300-FS

Weigh Range 50 g, Dead Load 300 g

SW-500/1000-FS

Weigh Range 500 g, Dead Load 1000 g
