SQDC

Stainless Steel Quick Disconnect

Chell Instruments

316 stainless construction
8, 16, 24, or 32 ports
1/16 inch and 1 mm compression fittings or bulged tubulations 1.0 mm and 1.6 mm
Silicone or FFKM seals with Perlast options
Secure locking with rotating cam or wire-lock
Pressure tested to 70 bar
Vacuum tight to 8×10^−3 mbar

Details

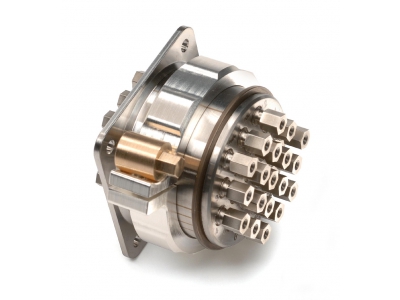

SQDC couplings provide a fast and reliable way to connect multiple pneumatic lines where high temperature and vibration are present, such as flight test and harsh industrial environments. Bodies are machined from 316 stainless steel and accept either stainless-tube compression fittings or bulged tubulations for flexible tubing. Two primary seal families are offered to match temperature needs. Anti-vibration locking keeps the connection secure under mechanical stress. The range includes mating blanks, pipe-work guides, and mounting options to simplify panel integration and service.

SQDC Dimensions

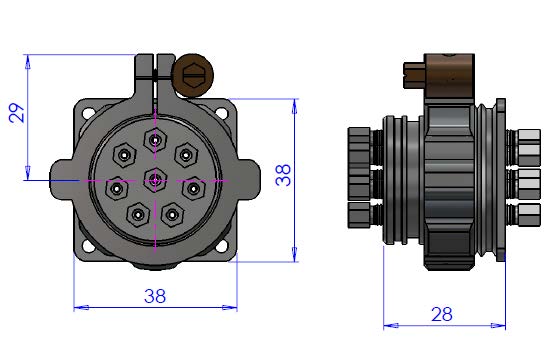

SQDC 8 way 0.04” (1mm) pair (SQDC-R-8-77)

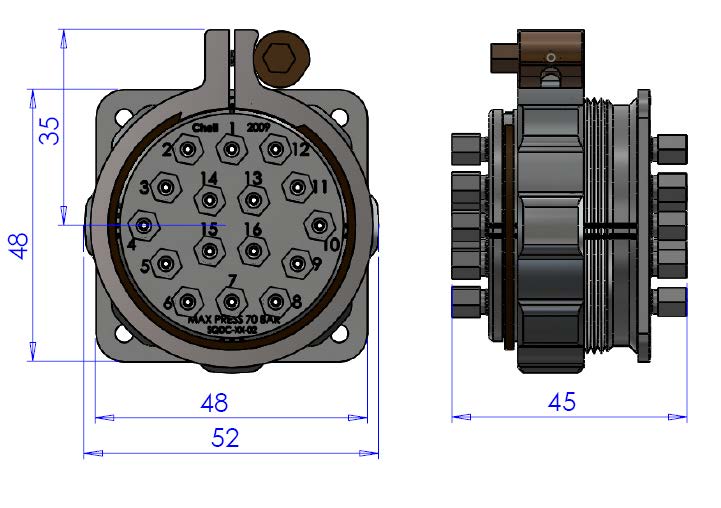

SQDC 16 way 1/16” pair (SQDC-R-16-22)

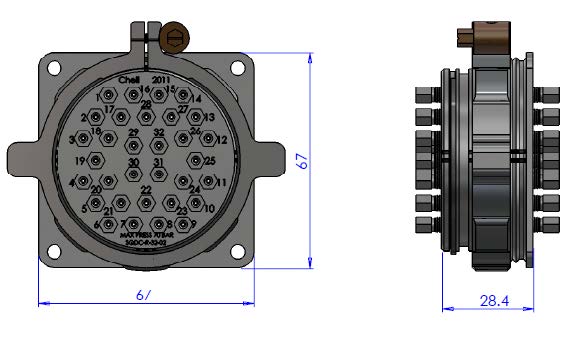

SQDC 32 way 0.04” (1mm) pair (SQDC-R-32-77)

Models

SQDC-R-16-12-SF-90-0-1

16 way, bulkhead 1/16 inch no fittings and removable 1/16 inch with Gyrolok ferrule and nut, Silicone with Perlast fluid seal, no guides on bulkhead and straight on removable, 3.2 mm mounting, cam lock.

SQDC-R-16-22-P-99-0-1

16 way, 1/16 inch both halves with Gyrolok, FFKM class seals via Perlast code, standard guides, 3.2 mm mounting, cam lock

SQDC-R-24-22-P-99-1-2

24 way, 1/16 inch compression on both halves with Gyrolok ferrules and nuts, Perlast seals, no pipe-work guides, 4-40 insert, wire-lock.

SQDC-R-24-37-P-21-1-1

24 way, bulkhead 1 mm bulged tubulation and removable 0.040 inch 1 mm compression, Perlast seals, 90 degree guide on bulkhead and 45 degree on removable, 4-40 insert, cam lock.

SQDC-R-32-44-S-11-0-1

32 way, 1.5 mm bulged tubulation on both halves, Silicone seals, 45 degree guides both halves, 3.2 mm mounting, cam lock.

SQDC-R-32-77-S-99-0-1

32 way SQDC for 1mm SS tubing with silicone seals, 3.2mm mounting holes and CAM lock main nut.

SQDC-R-8-77-S-00-0-1

8 way, 0.040 inch 1 mm compression on both halves, Silicone seals, straight guides on both halves, 3.2 mm mounting, cam lock.

SQDC-R-8-77-S-99-1-1

8 way, 1 mm compression both halves, Silicone seals, standard guides, 4-40 inserts, cam lock

Accessories

SQDC-701039

Tubing spanner for compression fittings and anti-vibration cam

SQDC-701317

Crow foot spanner for main nut - 16 way SQDC

SQDC-701574

Tubing spanner for compression fittings and anti-vibration cam (3”, 75mm)

SQDC-702658

Crow foot spanner for main nut - 24 way SQDC

SQDC-704039

Crow foot spanner for main nut - 8 way SQDC

STP2

Tubing pliers for use with bulged tubulations

Downloads

SQDC-Data-Sheet

Datasheet
