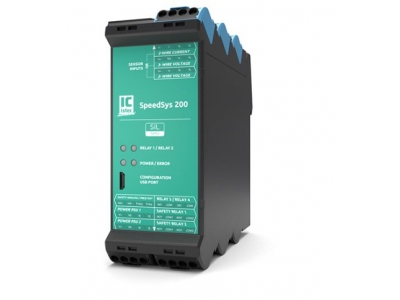

The SpeedSys 200 is a SIL-rated overspeed detection system for rotating machinery.
SpeedSys 200
Transmitter & Overspeed Protection Controller
Istec International B.V.
- Overspeed, Underspeed and Acceleration Detection
- Designed for versatility and scalable to the application
- Suitable for API 670 and API 612 applications
- Certified SIL 2 capability
- Fast 8 ms system response time
- 2 safety relays + 1 safety analog output per module
- Suitable for all common sensor types
Details
Specifications
Interface
TCP/IP
Input Type
±100 mV DC
±80 V DC
Frequency
±80 V DC
Frequency
# of Inputs
1
Output Type
0 - 10 V DC
Max Bandwidth
10 kHz
Models
SpeedSys 200
DIN-Rail Conditioner
Related

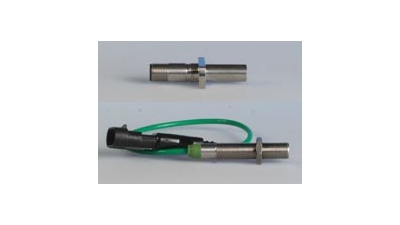

The D12 Hall-Effect sensors offer frequency of the output signal that is proportional to the speed. The unit also outputs a square wave push-pull signal.

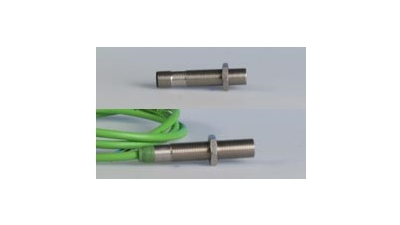

The E12 VRS sensors offer frequency and amplitude signal outputs proportional to speed in a sealed housing suited for harsh environments. As electromagnetic sensors, these units do not require an external supply.

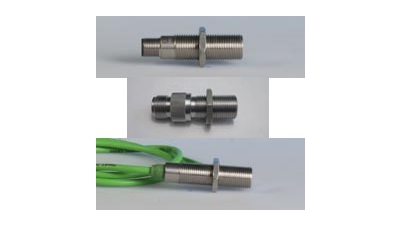

The E16 VRS sensors offer frequency and amplitude signal outputs proportional to speed in a sealed housing suited for harsh environments. As electromagnetic sensors, these units do not require an external supply.
