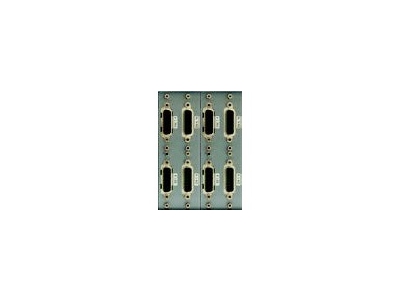

SPAR/BCF16

imc SPARTAN Chassis Module

imc Test & Measurement

  • imc SPARTAN, Chassis Module
  • 16 Analog Input Channels
  • Voltage, Strain Gauge, Bridge, LVDT or ICP Inputs
  • Supports imc Plug & Measure
  • Overvoltage Protection
  • Occupies 4 Slots

Specifications

Family
imc SPARTAN
Unit Type
Module
Input Type
Voltage
Current
Strain Gauge
ICP
Analog Inputs
16
Max Bandwidth
200 Hz
Max Sample Rate
500 Hz
Resolution
16-bit
Min Temperature
-10 °C
-40 °C
Max Temperature
55 °C
85 °C

Models

SPAR/BCF16
For Portable imc SPARTAN Chassis, 16 Analog Inputs, -10°C to 55°C
SPAR/BCF16-ET
For Portable imc SPARTAN Chassis, 16 Analog Inputs, -40°C to 85°C
SPAR/BCF16-R
For Rack imc SPARTAN Chassis, 16 Analog Inputs, -10°C to 55°C
SPAR/BCF16-R-ET
For Rack imc SPARTAN Chassis, 16 Analog Inputs, -40°C to 85°C

Downloads

imc Company Brochure
Brochure
imc SPARTAN, BCF16 Datasheet
Datasheet
imc SPARTAN Brochure
Brochure

Related

ACC/DSUBM

The 15 Pin DSUB connector with terminal connections that reflect the connectivity of specific Input amplifiers for 2 input channel on various amplifiers.

ZBXXX(4)-CD300(2)

This metal terminal box is ideal for field wiring of sensors, strain gauges, signal conditioners and instrumentation, providing a quick, reliable and convenient electrical connections.

CCXXX-CDXXX

These molded cables are terminated with the 15 pin DSUB Socket on one end and a 15 pin - 2 row DSUB connector on the other end with straight through 26AWG conductors.

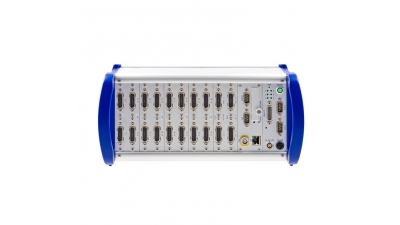

SPARTAN-4

The imc SPARTAN-4 chassis integrates many of the elements that are used in conjunction with data loggers to create a complete test platform. This unit eliminates the challenges of interfacing and maintaining multiple incompatible systems.

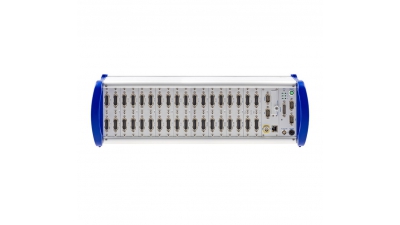

SPARTAN-8
