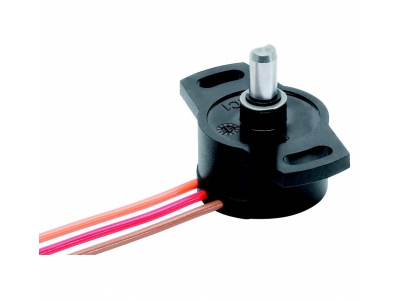

SP2800

Rotary Displacement Potentiometer

Novotechnik

  • Rotary Potentiometer
  • Temperature-Resistant Plastic Housing
  • Stainless Steel Shaft
  • 6 mm Shaft or Push-On Coupling
  • Connection: 3 Integral Conductor Wires per Channel
  • Highly Robust
  • Long Lifetime

Specifications

Type
Potentiometer
Full Scale
100°
130°
308°
345°
Max Speed
120 RPM
Output
Potentiometric
Non-Linearity
±0.30 % FS
±1.00 % FS
Resolution
Infinitesimal
Excitation
0 - 42 V DC
IP Rating
IP56
IP65
Min Temperature
-40 °C
Max Temperature
120 °C

Models

SP2801 100 002 001
100°, 6 mm Shaft, IP54
SP2801 308 000 001
308°, 6 mm Shaft, IP54
SP2821 308 000 001
308°, Push-On Coupling, IP54
SP2831 100 002 001
100°, 6 mm Shaft, IP65
SP2831 308 000 001
308°, 6 mm Shaft, IP65
SP2841 100 002 001
100°, Push-On Coupling, IP65
SP2841 100 067 006
2 Channel, 100° per Track, Push-On Coupling, IP65
SP2841 308 000 001
308°, Push-On Coupling, IP65
SP2841 345 065 001
345°, Push-On Coupling, IP65

Downloads

SP2800 Rotary Displacement Potentiometer
Datasheet
