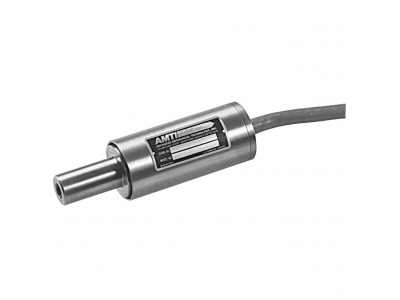

The SP1D, formaly known as the MC1, is a compact and waterproof six-axis sensor that is well-suited for applications such as underwater models and tow tanks. The body of the load cell is manufactured from heat treated 17-4 PH stainless steel, has mounting surfaces equipped with threaded holes, and features an integral, axial-exit cable.
SP1D
Force/Torque Sensor
Advanced Mechanical Technology Inc. (AMTI)
- Compact and waterproof six-axis sensor
- Body of the load cell is manufactured from heat treated 17-4 PH stainless steel
Details
Specifications
Channels
6 (Fx, Fy, Fz, Mx, My, Mz)
Full Scale (Fz)
250 lbs
500 lbs
500 lbs
Non-Linearity
± 0.2 % FS
Dimensions
82.55 x 25.4 mm
Body Material
Stainless Steel
Min Temperature
-18 °C
Max Temperature
52 °C
Models
SP1D-250
Fz Range: 250 lbs
SP1D-500
Fz Range: 500 lbs
