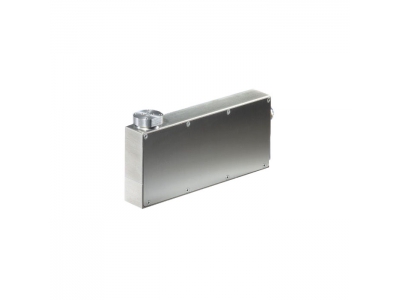

SL-M-FS

EMFR Weigh Cell

Wipotec Gmbh

Weighing range up to 1,000 g, covered by 6 models
Additive dead load range up to 600 g
Compact, Slim construction
Multi-track applications starting from 30 mm centerline distance
Wash Down Mode (optional)
Interface 1: CAN, RS 422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink (optional)
Interface 2: RS 232 for service and configuration

Details

The series SL-M-FS Weigh Cells cover the weighing range up to 1,000 g. They have been specifically designed as compact sensor components, which are suited for installation into multi-track applications and everywhere where smallest frame sizes are demanded.

By using GMP-tailored design, all Weigh Cells are also suitable for use in pharmaceutical industrial plants.

The Weigh Cell sensor is connected with the separate electronic box via a cable of 5 m length. The electronic box is prepared for top hat rail mounting in control cabinets.

The system provides final weighing values by default via a CAN, RS 422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT or Powerlink interface.

Specifications

Type

Weigh Cell

Full Scale

20 g
50 g
250 g
500 g
1000 g

Dead Load

50 g
300 g
600 g

Interface

RS232
RS422
CANbus
Ethernet
EtherCAT
Profibus
Profinet
Powerlink
Binary I/O
Bus Operation

Linearity

0.0001 g
0.0002 g
0.001 g
0.002 g
0.004 g

Resolution

0.0001 g
0.0002 g
0.0005 g
0.001 g
0.002 g

IP Rating

IP44
IP65

Models

SL-M 100/150-FS

Weigh Range 100 g, Dead Load 150 g

SL-M 1000/600-FS

Weigh Range 1000 g, Dead Load 600 g

SL-M 20/50-FS

Weigh Range 20 g, Dead Load 50 g

SL-M 250/300-FS

Weigh Range 250 g, Dead Load 300 g

SL-M 50/50-FS

Weigh Range 50 g, Dead Load 50 g

SL-M 500/300-FS

Weigh Range 500 g, Dead Load 300 g
