SI-USB3-DAS Module Selection Chart
SI-USB3

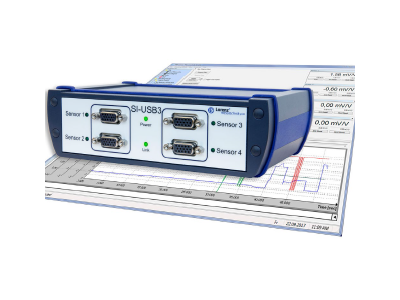

2 & 4 Channel Data Acquisition Module
Lorenz Messtechnik GmbH
- Input ranges for mV/V, V and mA
- Input Types; Load Cells, Potentiometer, Temperature Probes, Quadrature Encoders
- Input Types can be intermixed
- 16 bit A/D with sample of up to 5kHz
- Digitally selectable analogue input filters, 30, 300 & 3000 Hz
- Synchronicity of measuring input channels
- Adjustment and control signal activation via software
Details

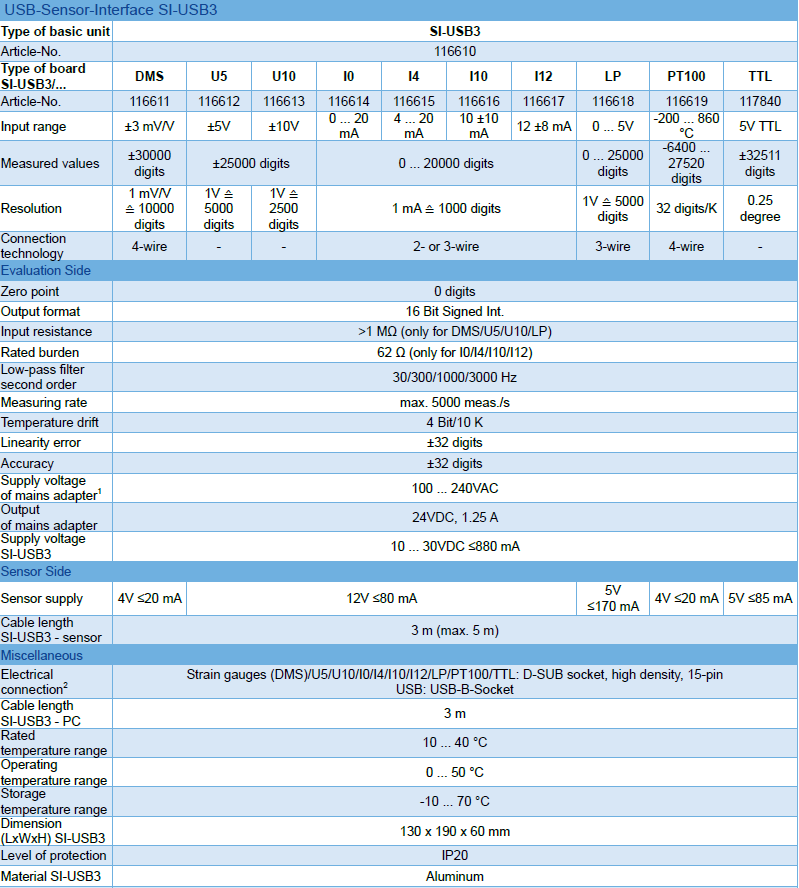

Specifications
Input Type
Voltage
Current
Strain Gauge
Thermocouple/RTD
Digital
Frequency
Encoder
Current
Strain Gauge
Thermocouple/RTD
Digital
Frequency
Encoder
Analog Inputs
1
2
4
2
4
Digital Inputs
2
Models
SI-USB3
Base Unit for up to 4 Input Channels
SI-USB3/4.5 mV/V
Strain Gauge Sensor Input Module, +/-4.5mV/V, 4 Vdc Exc.
SI-USB3/DMS
Strain Gauge Sensor Input Module, +/-3mV/V, 4 Vdc Exc.
SI-USB3/I0
0 to 20 mA input module , 12 Vdc Exc.
SI-USB3/I10
Current Input of 10 mA +/- 10mA, 12 Vdc Exc.
SI-USB3/I12
Current Input of 12 mA +/- 8mA, 12 Vdc Exc.
SI-USB3/I4
4 to 20 mA Input Module, 12 Vdc Exc.
SI-USB3/LP
Potentiometer or 0-5 Vdc Input Module, 5 Vdc Exc.
SI-USB3/PT100
RTD Input Module for -200 ... 860 deg.C.
SI-USB3/TTL
Encoder or Frequency, 5V TTL Input Module, 5 Vdc Exc.
SI-USB3/U10
10 Vdc Input Module, 12 Vdc Exc.
SI-USB3/U5
5 Vdc Input Module, 12 Vdc Exc.
Related

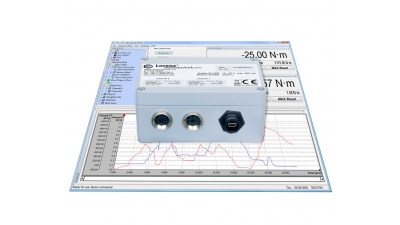

The sensor interface SI-USB is connected between the sensor and the PC. By this, analog sensor signals with up to 16 bit resolution are digitized. Highly-dynamic are realizable with a measuring rate of 2500 measurements/sec per measurement...

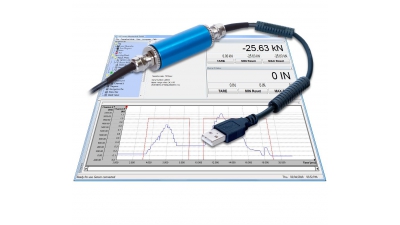

The sensor interface LCV-USB2 is connected between sensor and PC. By this, analog sensor signals are digitized with up to 16 bit resolution. By the measuring rate of up to 5000 measurements per second, high dynamic measuring tasks are...
