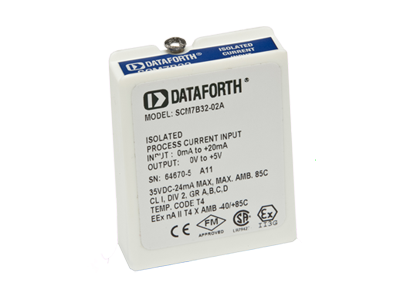

SCM7B34

RTD Input Process Control Signal Conditioner

Dataforth

Linearized 2- or 3-Wire RTD Input Module
1500 V Transformer Isolation
Accuracy: ± 0.05% to ± 0.15%
DIN Rail Mounting with DIN Backpanel
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 120 V AC Continuous

Specifications

Family

Dataforth 7B

Input Type

RTD

# of Inputs

1

Output Type

0 - 5 V DC
1 - 5 V DC
0 - 10 V DC

Bandwidth

3 Hz

Isolation

Yes

Supply Power

14 - 35 V DC

Models

SCM7B34-01

100 Ω Pt, ± 100°C Input, 1-5 V DC Output

SCM7B34-01A

100 Ω Pt, ± 100°C Input, 0-5 V DC Output

SCM7B34-01D

100 Ω Pt, ± 100°C Input, 0-10 V DC Output

SCM7B34-02

100 Ω Pt, 0-100°C Input, 1-5 V DC Output

SCM7B34-02A

100 Ω Pt, 0-100°C Input, 0-5 V DC Output

SCM7B34-02D

100 Ω Pt, 0-100°C Input, 0-10 V DC Output

SCM7B34-03

100 Ω Pt, 0-200°C Input, 1-5 V DC Output

SCM7B34-03A

100 Ω Pt, 0-200°C Input, 0-5 V DC Output

SCM7B34-03D

100 Ω Pt, 0-200°C Input, 0-10 V DC Output

SCM7B34-04

100 Ω Pt, 0-600°C Input, 1-5 V DC Output

SCM7B34-04A

100 Ω Pt, 0-600°C Input, 0-5 V DC Output

SCM7B34-04D

100 Ω Pt, 0-600°C Input, 0-10 V DC Output

SCM7B34-05

100 Ω Pt, -50 to 300°C Input, 1-5 V DC Output

SCM7B34-05A

100 Ω Pt, -50 to 300°C Input, 0-5 V DC Output

SCM7B34-05D

100 Ω Pt, -50 to 100°C Input, 0-10 V DC Output
